TLS

p2pstream has separate TLS systems for management traffic and public listener traffic.

What It Is

Management TLS protects the management UI/API and agent connections. Public TLS protects user traffic received by HTTPS listeners.

When It Matters

TLS matters during first setup, agent installs, public certificate issuance, browser trust warnings, and restores. Losing the management CA changes what auto-TLS agents trust.

Runtime Behavior

Management HTTPS is enabled by default.

Mode	Configuration	Behavior
auto	default	Generate and persist a local management CA and server certificate.
provided	MANAGEMENT_TLS_CERT_FILE and MANAGEMENT_TLS_KEY_FILE	Use your certificate and key.
off	requires MANAGEMENT_ALLOW_INSECURE_HTTP=true	Serve management over plain HTTP.

Auto-generated management files are stored under ${CONFIG_DIR}/certs/management, which is /data/certs/management in Compose. Agents verify management TLS with MANAGEMENT_CA_FILE or MANAGEMENT_CA_PEM_BASE64.

Avoid insecure management HTTP

Use MANAGEMENT_TLS_MODE=off only for isolated development or when another trusted local component terminates TLS and you fully understand the risk.

Public HTTPS listeners select certificates by SNI. Certificate mappings belong to HTTPS listeners and can be:

• uploaded or file-path manual certificates,
• GUI-generated self-signed certificates,
• ACME-managed certificates.

ACME challenges:

Challenge	Requirement
HTTP-01	Public DNS hostname must reach the HTTP listener, usually port 80.
TLS-ALPN-01	Public DNS hostname must reach the HTTPS listener, usually port 443.
DNS-01	Enabled Cloudflare DNS credential. Required for wildcard certificates.

If no configured certificate matches a public hostname, the HTTPS listener can serve a fallback self-signed certificate. Treat that as a public deployment failure.

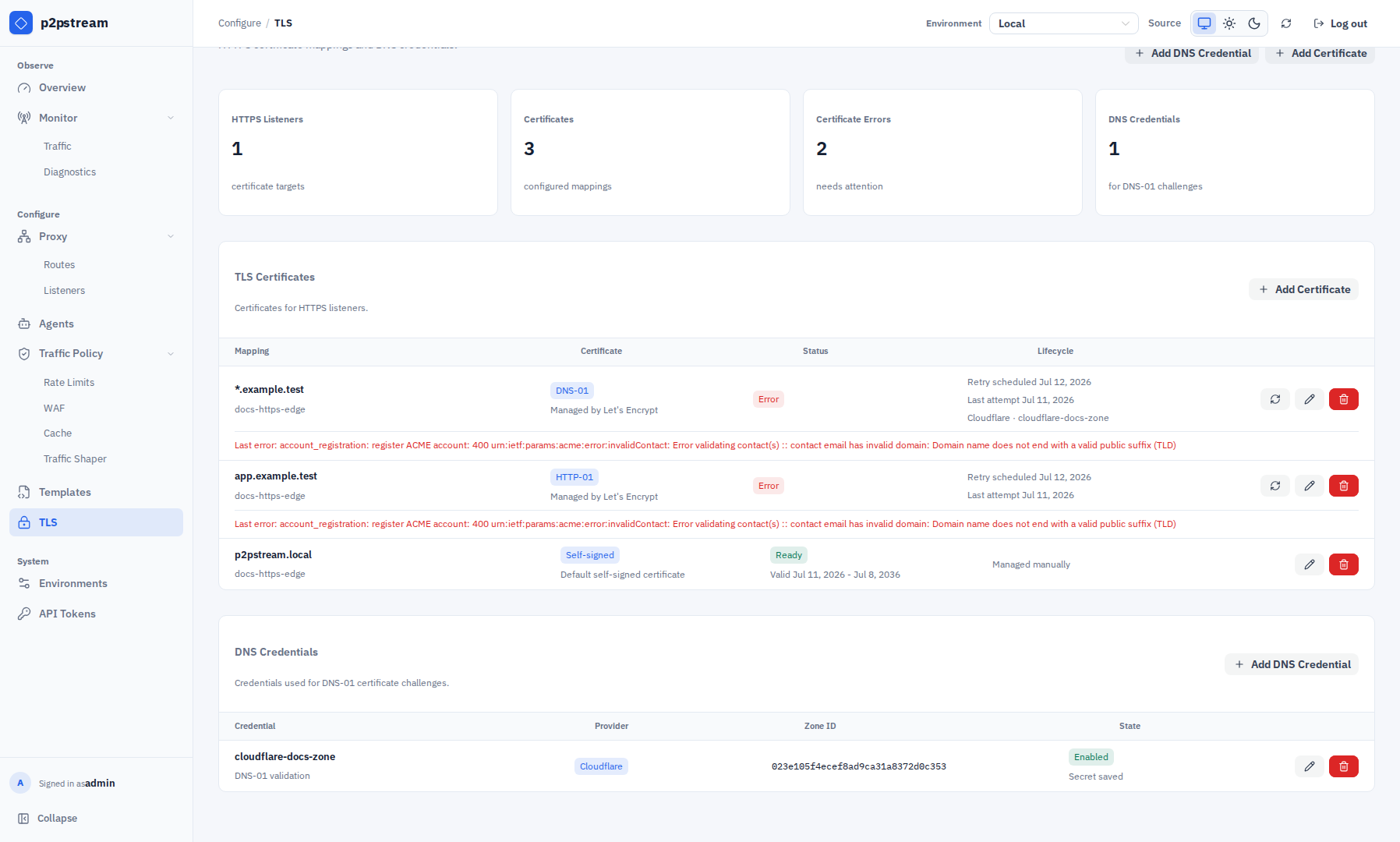

The TLS page shows certificate mappings per HTTPS listener, their issuance status, renewal metadata, and DNS credentials used for DNS-01 validation.

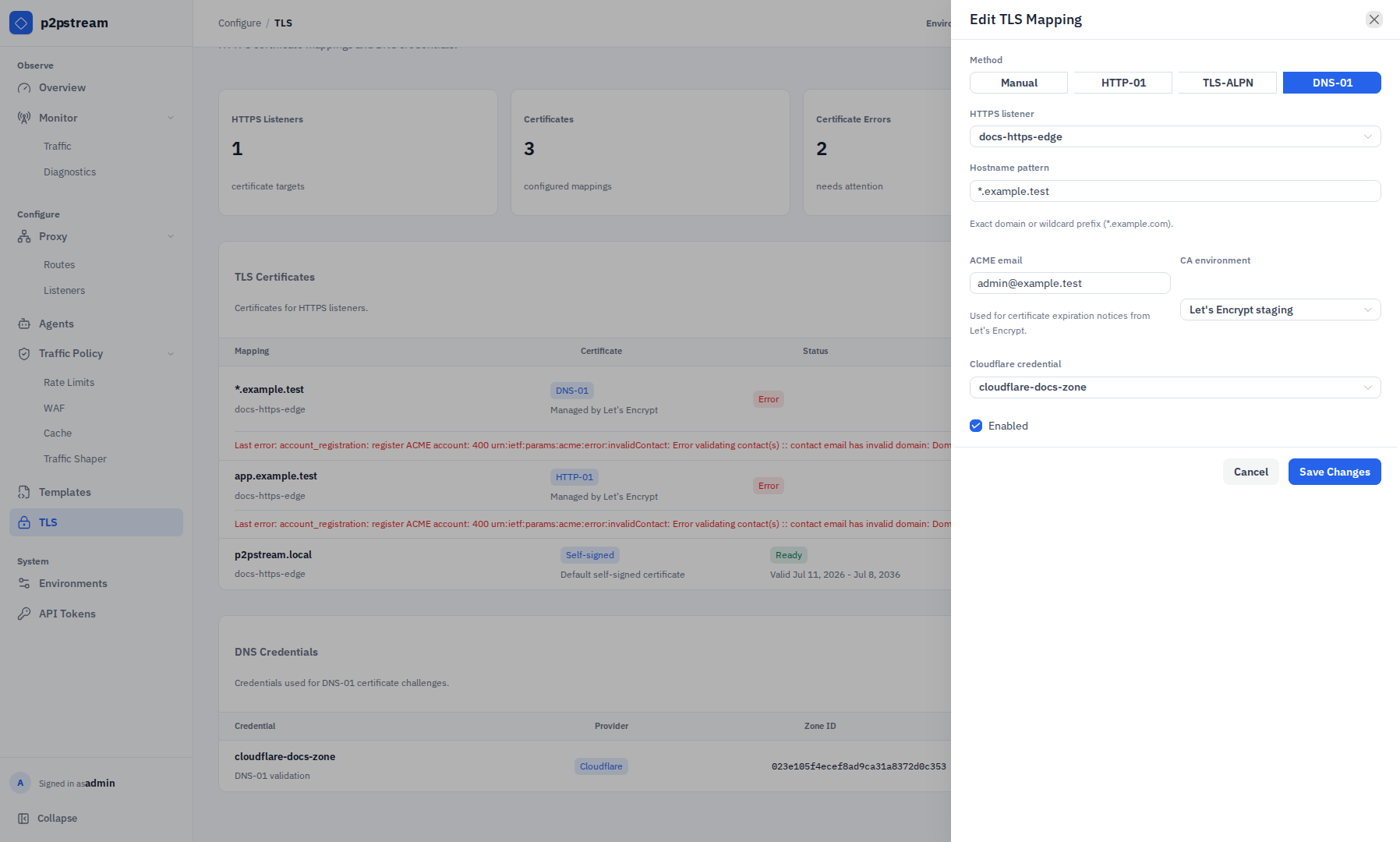

DNS-01 mappings attach wildcard-capable ACME validation to a saved DNS credential, which is separate from the HTTPS listener that serves the resulting certificate.

Common Mistakes

• Setting MANAGEMENT_PUBLIC_URL to a URL agents cannot reach.
• Forgetting MANAGEMENT_TLS_EXTRA_HOSTS for auto-generated certificate names.
• Using HTTP-01/TLS-ALPN-01 for wildcard certificates.
• Restoring without /data/certs/management and breaking existing agent trust.
