Troubleshooting

Diagnose management, agent, listener, TLS, route, target, WAF, rate-limit, cache, and trace problems from the same operational checklist.

Use This When

Use this when a request fails, management does not load, an agent will not connect, ACME is stuck, or a traffic policy behaves unexpectedly.

Prerequisites

Start with logs

Logs show startup errors, TLS failures, agent connection problems, and target forwarding errors faster than any other check.

Start with logs:

docker compose logs -f p2pstream

For systemd installs:

sudo journalctl -u p2pstream -f
sudo journalctl -u p2pstream-agent -f

When diagnosing public traffic, open Traffic, enable tracing, reproduce the request, and then turn tracing off.

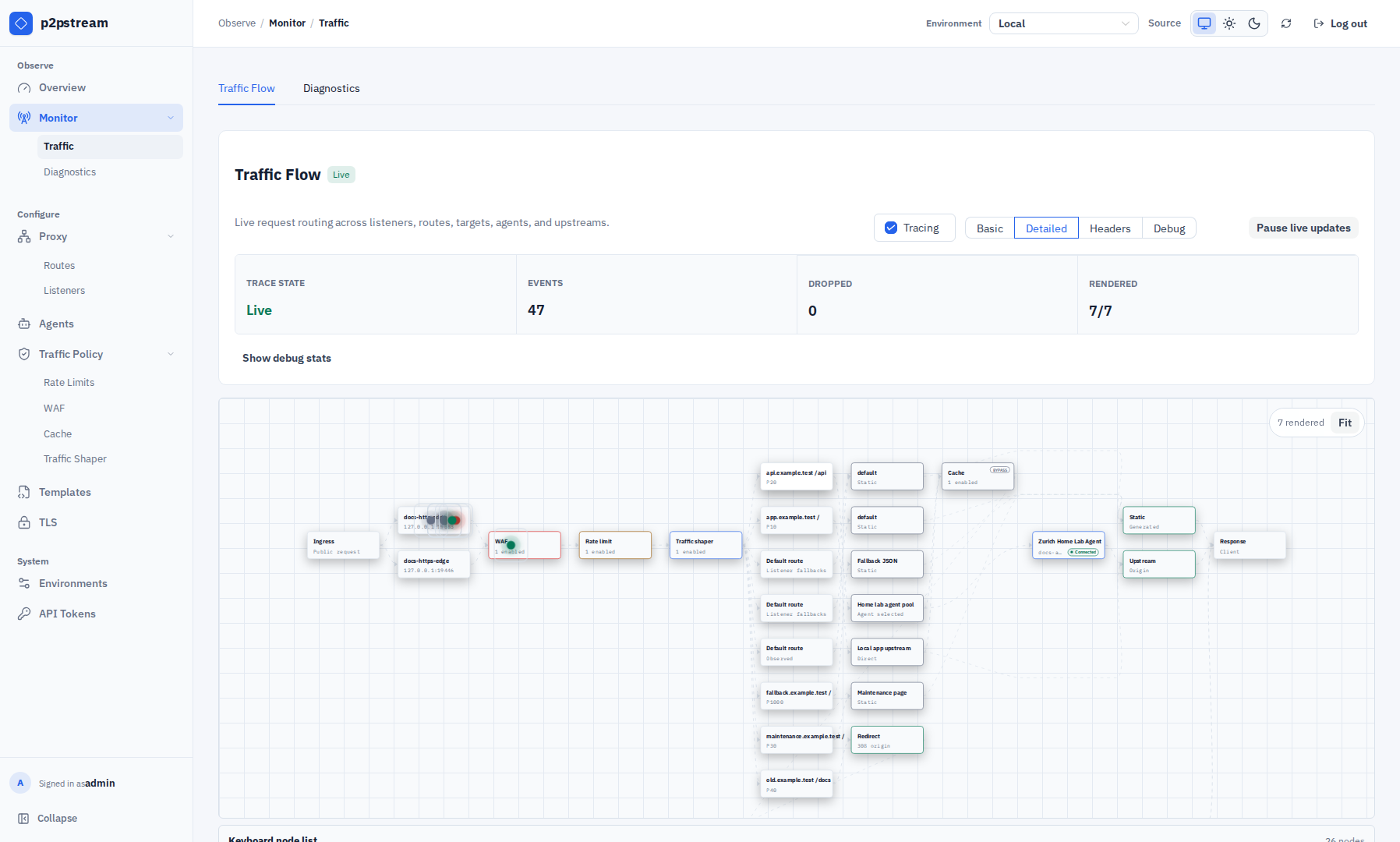

Use the Traffic flow view while reproducing a request to see which stage handled, rejected, cached, or failed the request.

The trace details modal is the fastest way to inspect route matching, selected target, cache outcome, agent selection, upstream timing, and response status for a single request.

Management UI Will Not Open

Check	Fix
Container or service running	docker ps or systemctl status p2pstream.
Port published	Publish 8081:8081 or use the actual host port.
Scheme	Use https://host:8081 unless management TLS is explicitly off.
Firewall	Allow the management port from your admin network.
Browser UI disabled	If MANAGEMENT_UI_DISABLED=true, the browser UI intentionally returns 404; APIs and the agent Yamux tunnel remain available.

Browser Certificate Warning

Cause	Fix
Auto-generated management TLS	Trust the generated CA or provide your own certificate.
Wrong hostname	Set MANAGEMENT_PUBLIC_URL and MANAGEMENT_TLS_EXTRA_HOSTS, then restart if needed.
Management behind another proxy	Terminate trusted TLS at that proxy or pass the correct public URL to agents.

Cannot Log In

Cause	Fix
Wrong or forgotten password	Reset it with p2pstream users reset-password USERNAME against the same database.
Setup window expired and no users exist	Restart the server to reopen the 5 minute setup window.
Reset command used the wrong database	Run it with the same CONFIG_DIR as the server or pass --database-url.

Agent Will Not Connect

Check	Fix
MANAGEMENT_URL	It must point to management, usually https://host:8081.
CA trust	Use MANAGEMENT_CA_FILE or MANAGEMENT_CA_PEM_BASE64 for auto TLS.
Token	Rotate the token and update the agent env file.
Agent ID	Use the generated agent-... public ID.
Firewall/NAT	Agent host must reach management HTTPS/TLS and /agent/tunnel.
Insecure URL	HTTP requires AGENT_ALLOW_INSECURE_MANAGEMENT=true, intended for development only.

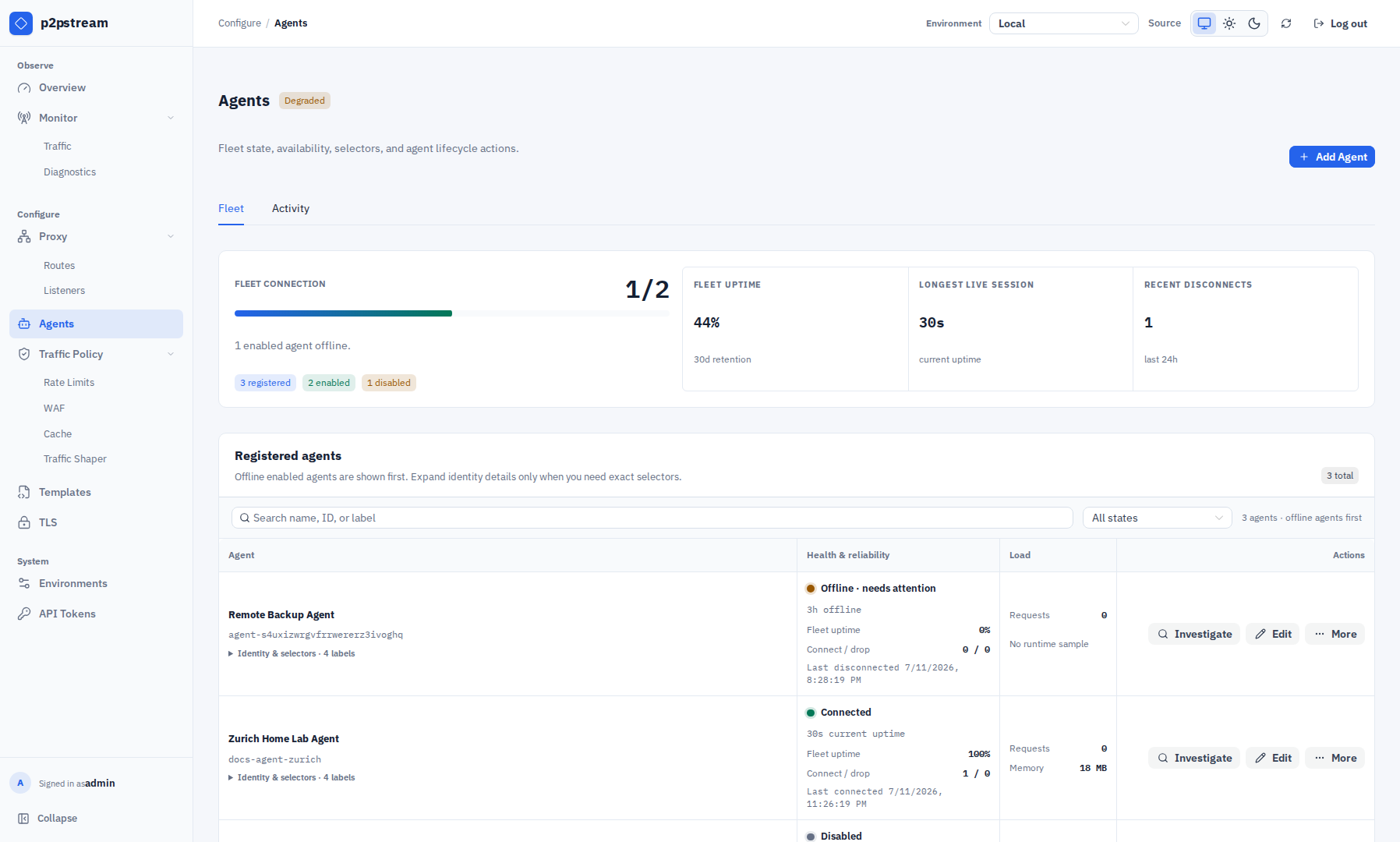

The Agents page shows whether an agent is connected, offline, disabled, recently disconnected, or missing recent connection history.

Public Listener Fails To Bind

Cause	Fix
Port already used	Stop the other service or choose another listener port.
Missing Docker publish	Add host:container port mapping and restart the container.
Privileged port with non-root user	Run with enough privileges or bind a high port.
Bind address not present	Use an empty bind address or a real local address.

HTTPS Serves Fallback/Self-Signed Certificate

Cause	Fix
No matching certificate mapping	Add a mapping for the exact host or wildcard in TLS.
ACME certificate not ready	Check certificate status and last error.
Request SNI mismatch	Test with the real hostname, not the IP address.
Listener not restarted	Stop/start the listener or wait for automatic restart after certificate issuance.

The TLS page shows whether the requested hostname has a matching certificate mapping, whether ACME is ready, and which listener owns the mapping.

ACME Fails

Check	Fix
Public DNS	Run dig +short <hostname> — it must return the p2pstream server's public IP.
HTTP-01	Port 80 must reach the HTTP listener. Verify with curl -I http://<hostname>/.well-known/acme-challenge/test from an external host.
TLS-ALPN-01	Port 443 must reach the HTTPS listener.
DNS-01	Cloudflare zone ID and API token must be valid and enabled.
Wildcard	Use DNS-01; HTTP-01 and TLS-ALPN-01 do not support wildcard issuance.
CA	Test with staging before production.

Route Does Not Match

Check	Fix
Listener	Route must belong to the listener receiving the request.
Host pattern	Use exact host or *.example.com.
Path prefix	Prefix must start with /.
Priority	Lower numbers win. Put specific routes first.
Default route	If no explicit route matches, the listener default route handles the request.

Target Returns Bad Gateway

Cause	Fix
Direct target origin unreachable	Run curl -I http://<origin-host>:<port> from inside the p2pstream container: docker compose exec p2pstream curl -I http://app:8080.
Agent target origin unreachable	SSH to a label-matched agent host and run curl -I http://<origin-host>:<port> to confirm the agent can reach the service from its network.
Agent offline	Reconnect or enable a label-matched agent.
Origin TLS error	Fix the origin certificate; use tls_skip_verify only as a temporary workaround for internal self-signed certs.
Wrong target origin	Include scheme and host, for example http://app:8080.
Passive health cooldown	If health checks are enabled, recent connect or timeout failures can temporarily remove the target or selected target-agent path from routing.

Client cancellations reported as context canceled do not create passive health cooldowns. Real upstream timeouts, agent disconnects, and transport failures can still create cooldowns when target health checks are enabled.

When health checks are disabled, transient upstream failures fail only the current request and should not cause no_route_target_available.

Target Returns Gateway Timeout

Cause	Fix
Origin is slow to send response headers	Increase the target response-header timeout. The default is 60000 ms.
Agent target waits on a private app	SSH to a label-matched agent host and test curl -I http://<origin> with a long timeout (--max-time 65) to confirm the service responds. Raise the target timeout if it does.
Health check timeout confusion	Health-check timeout is separate from the response-header timeout and does not affect request serving.
Old agent binary	Upgrade agents and servers together; old WebSocket agents are incompatible with the Yamux tunnel transport.

The target response-header timeout limits only the wait for first upstream headers. It does not cap the duration of streaming a response after headers are received.

Agent Tunnel Disconnects

Cause	Fix
Management reverse proxy blocks upgrades	Ensure the proxy allows HTTP/1.1 upgrade streaming for p2pstream-yamux on /agent/tunnel.
Idle upgraded-connection timeout is too low	Set the management proxy idle timeout high enough for long-lived Yamux tunnel sessions.
Keepalive failures	Check network reachability between the agent host and management URL; tunnel failures disconnect the agent so it can reconnect cleanly.

Agent Uptime Looks Wrong

Cause	Fix
Retention window changed	Uptime percentages use retained management connection history, not all-time history. Check the dashboard retention window.
Agent record is new	The observation window starts at the later of retention start or agent creation time. New agents do not include time before they existed.
Server restarted after an unclean exit	Startup closes stale open connection rows and marks affected agents disconnected at that startup time. This prevents old sessions from looking active forever.
Agent is offline	The Agents page shows current offline duration from the last recorded disconnect time.
Missing historical rows	Uptime is based on local management connections data. Deleted or expired rows cannot be reconstructed from agent self-reporting.

Static Asset Is Not Cached

Cause	Fix
No matching cache rule	Check host, path prefix, suffix, method, route/target filters, and priority.
Browser sends cookies	Enable Cache requests with Cookie headers only on precise public asset rules.
Authorization header present	Authorization requests always bypass cache.
Origin sends Set-Cookie	p2pstream will not store the response.
Origin sends private, no-store, or no-cache	p2pstream respects the origin denial.
Origin sends Vary: Cookie, Vary: Authorization, or Vary: *	p2pstream will not store the response.
Origin sends Vary: Accept-Encoding	This is supported; it creates separate variants.
Status or object size not allowed	Adjust rule status codes or max object size if appropriate.

Rate Limits Affect Every User

Cause	Fix
p2pstream sees one proxy IP	Add better key parts or place p2pstream at the edge.
Rule too broad	Add host/path/method matchers.
Priority conflict	Move specific rules to lower priority numbers.

WAF Blocks, Challenges, Or Queues Unexpectedly

Cause	Fix
Rule too broad	Narrow the WAF match by host, path, method, header, cookie, or query parameter.
Priority conflict	Lower priority numbers win. Adjust priorities or matches.
Captcha provider unavailable	Confirm the provider is enabled and site key/secret key match upstream configuration.
Waiting room stays active	Check trigger thresholds, active request counts, server CPU, and agent CPU in the dashboard. Use 0 to disable an automatic signal.
All clients share one queue identity	Add key parts that identify visitors better than remote IP when behind another proxy.
Large form or upload must be retried	Captcha and waiting-room admission use 303 redirects and do not replay request bodies.

Trace Stream Reconnects

Cause	Fix
Management connection interrupted	Check browser network and management logs.
Server restarted	Reopen Traffic after restart.
Too much trace volume	Use Basic or Detailed level and clear old traces.
Auth session expired	Log in again.

Verification

After applying a fix, rerun the exact failing request, check Overview status classes, and use Traffic tracing only long enough to confirm the request path.

Next Steps

• Trace live traffic
• Routing rules reference
• Cache reference
