Screenshots

A visual reference for the current p2pstream management console. These images are documentation assets under docs/assets/new/ and are used throughout the docs where they clarify the current UI.

Overview And Monitor

p2pstream first-run setup screen for creating the initial administrator account — First login setup

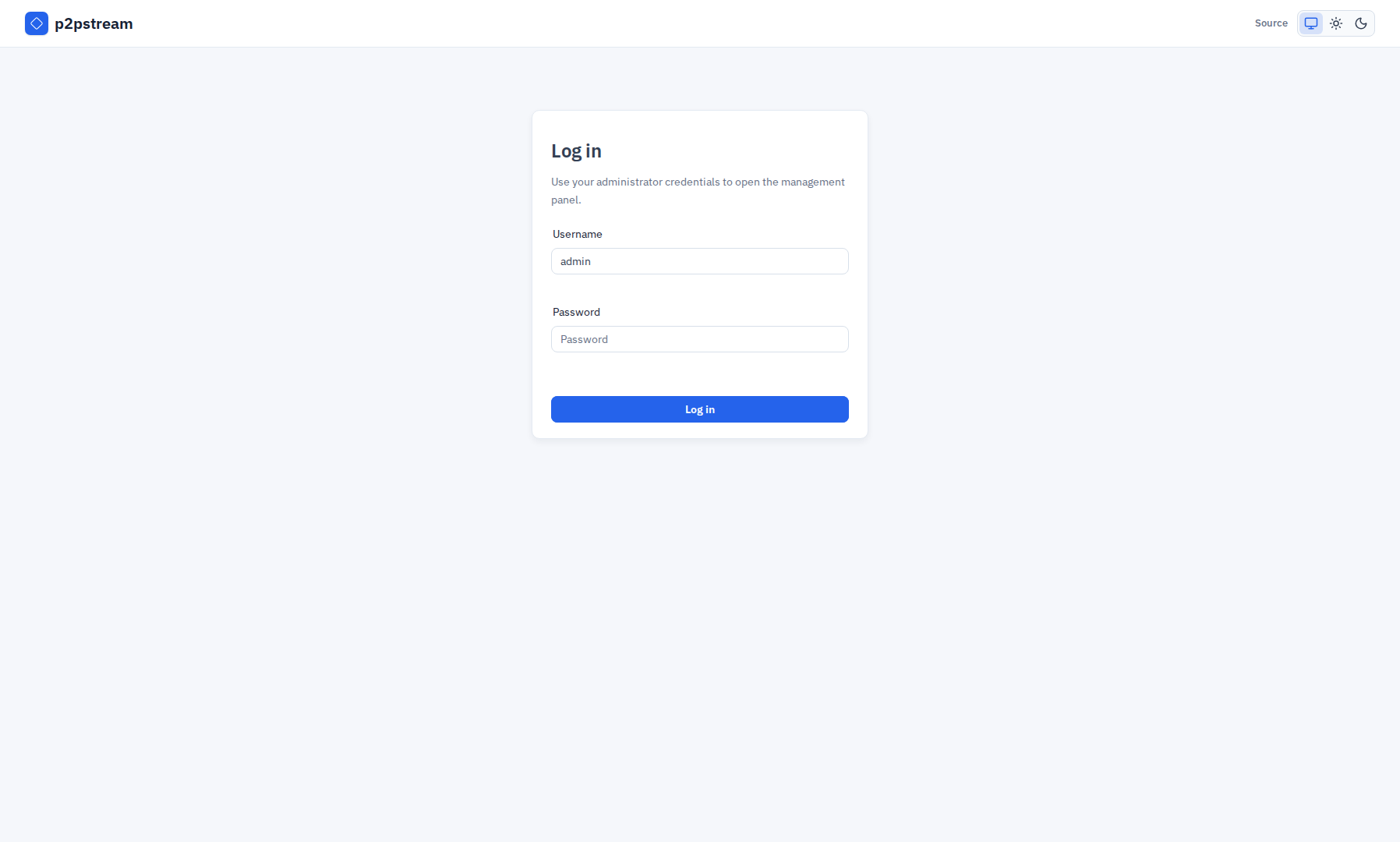

p2pstream login page with username and password fields — Login page

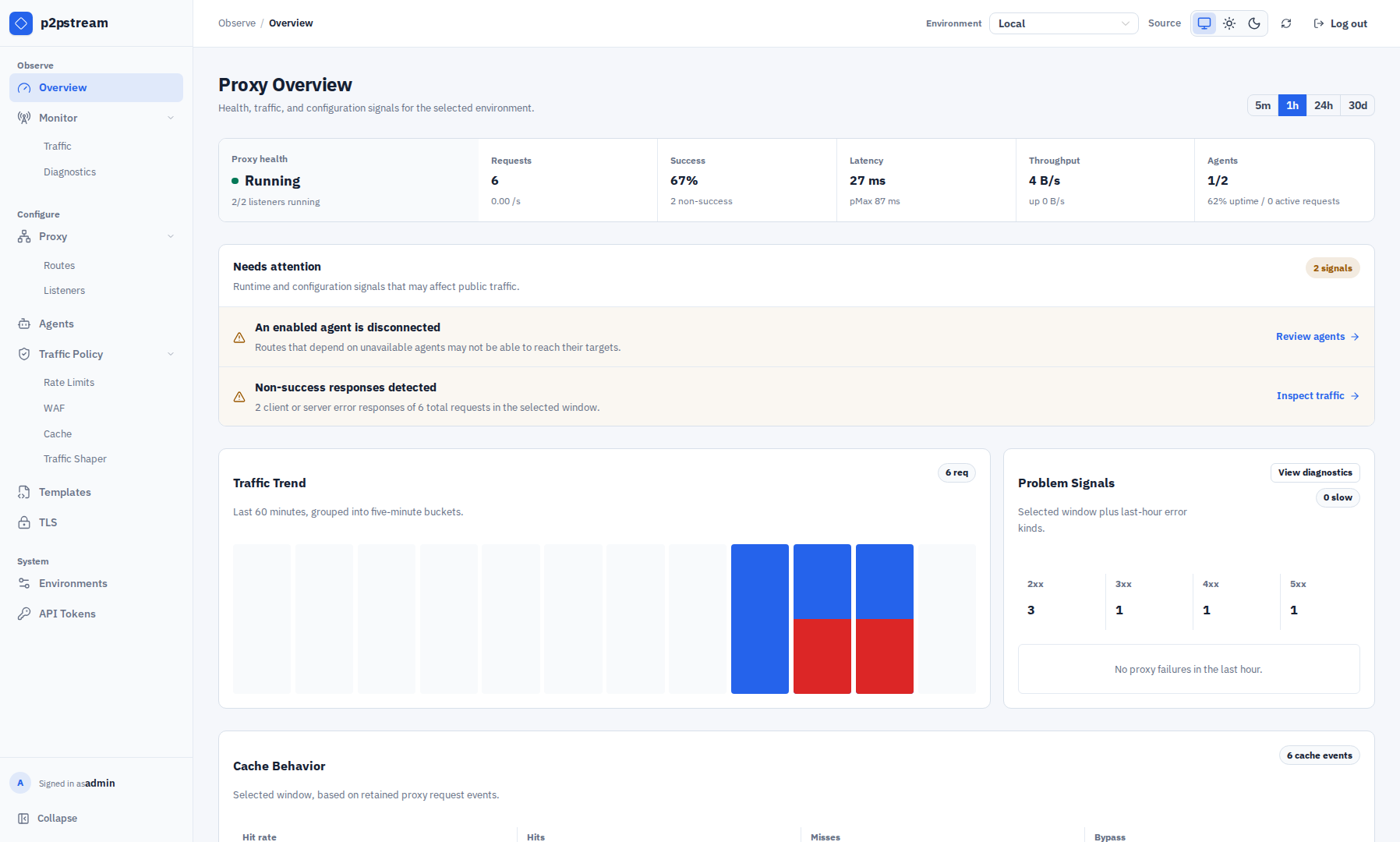

p2pstream Overview dashboard showing proxy status, request totals, success rate, traffic trend, hotspots, and problem signals — Overview dashboard

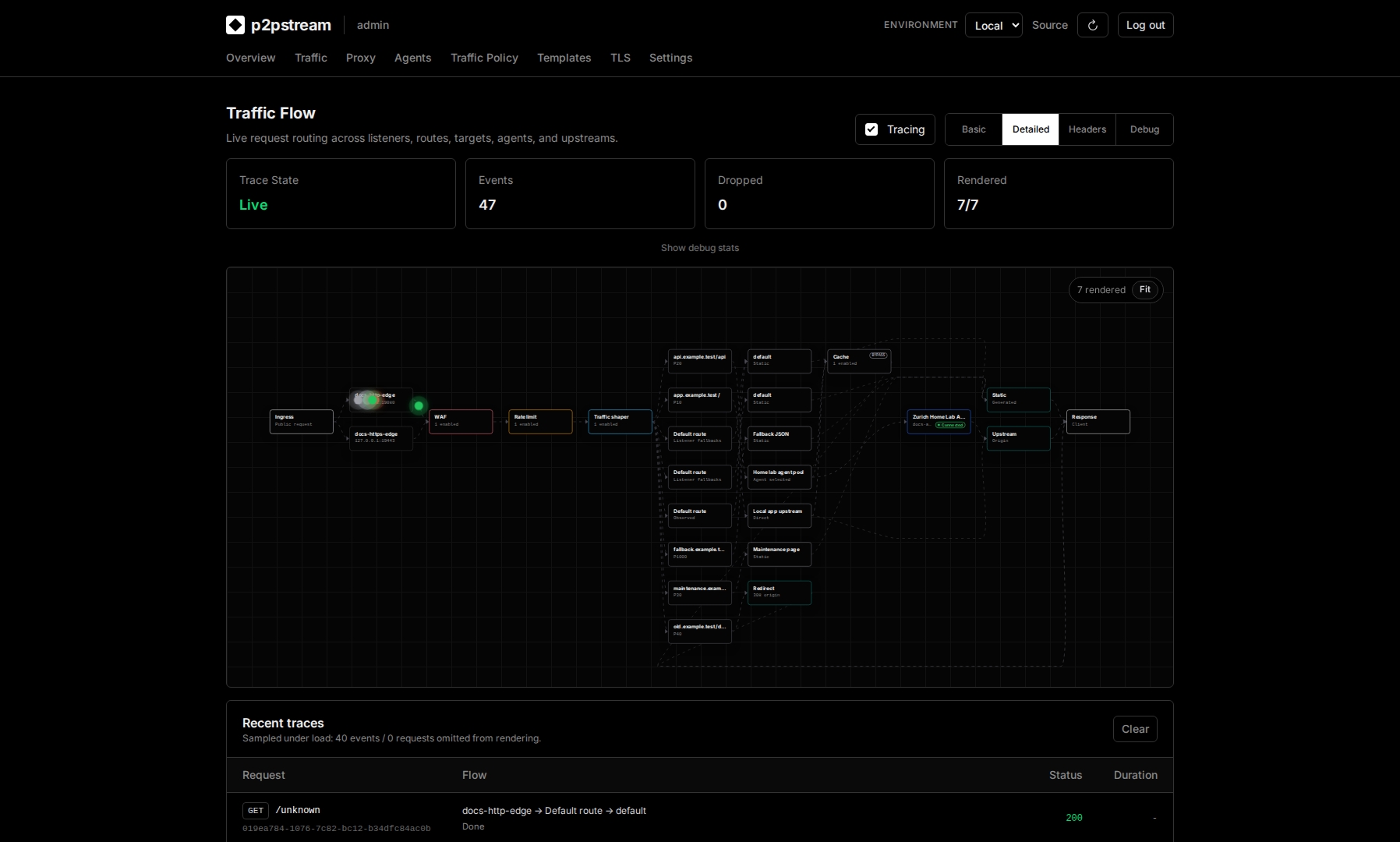

p2pstream Monitor Traffic page showing live trace state, capture-detail controls, pause action, request flow through listeners and policy to routes and targets, and a keyboard node list — Monitor traffic flow

p2pstream Trace details drawer showing request outcome, status, duration, retained events, resolved listener route target and agent, lifecycle, and policy decisions — Incident-first trace details drawer

Proxy Configuration

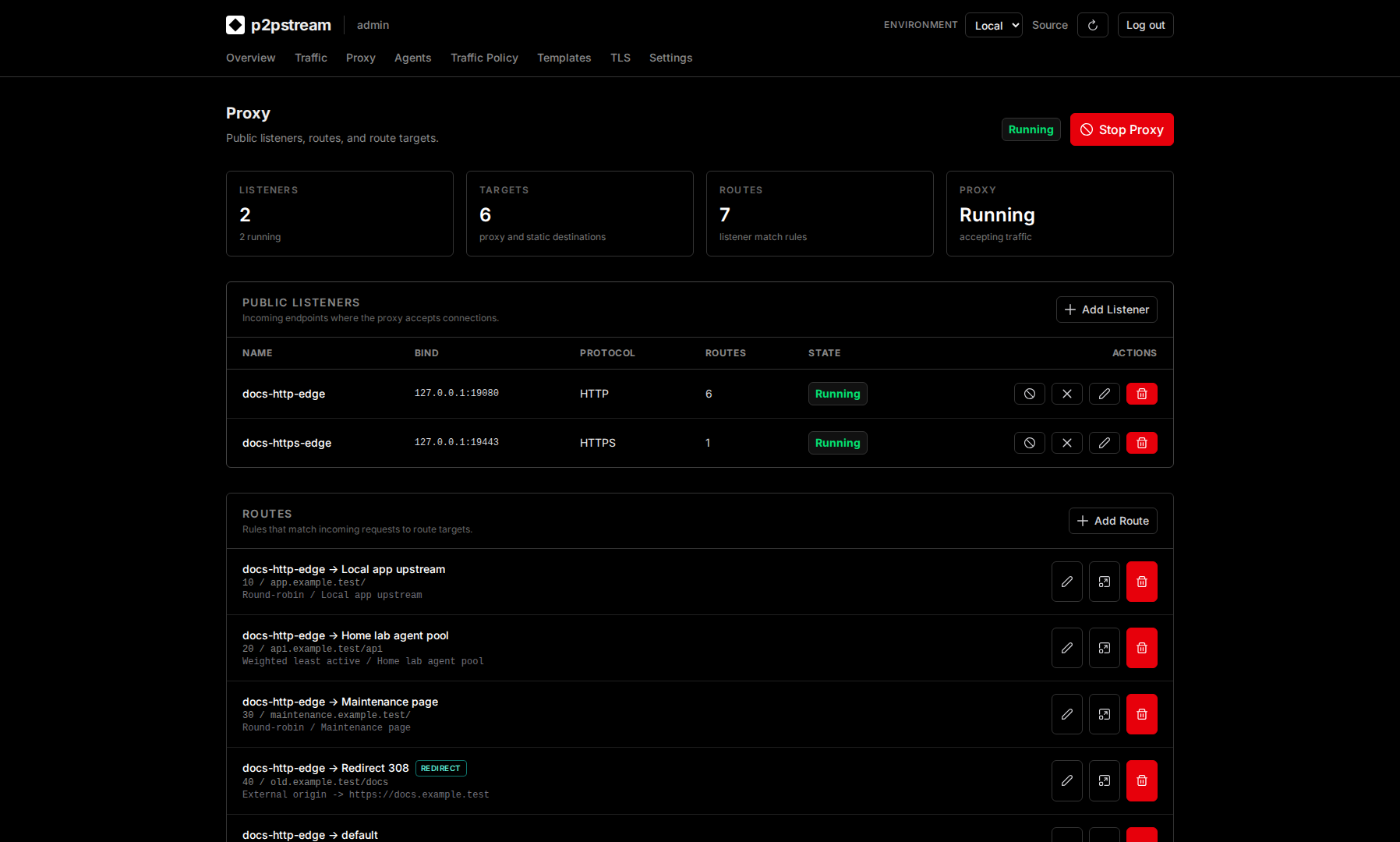

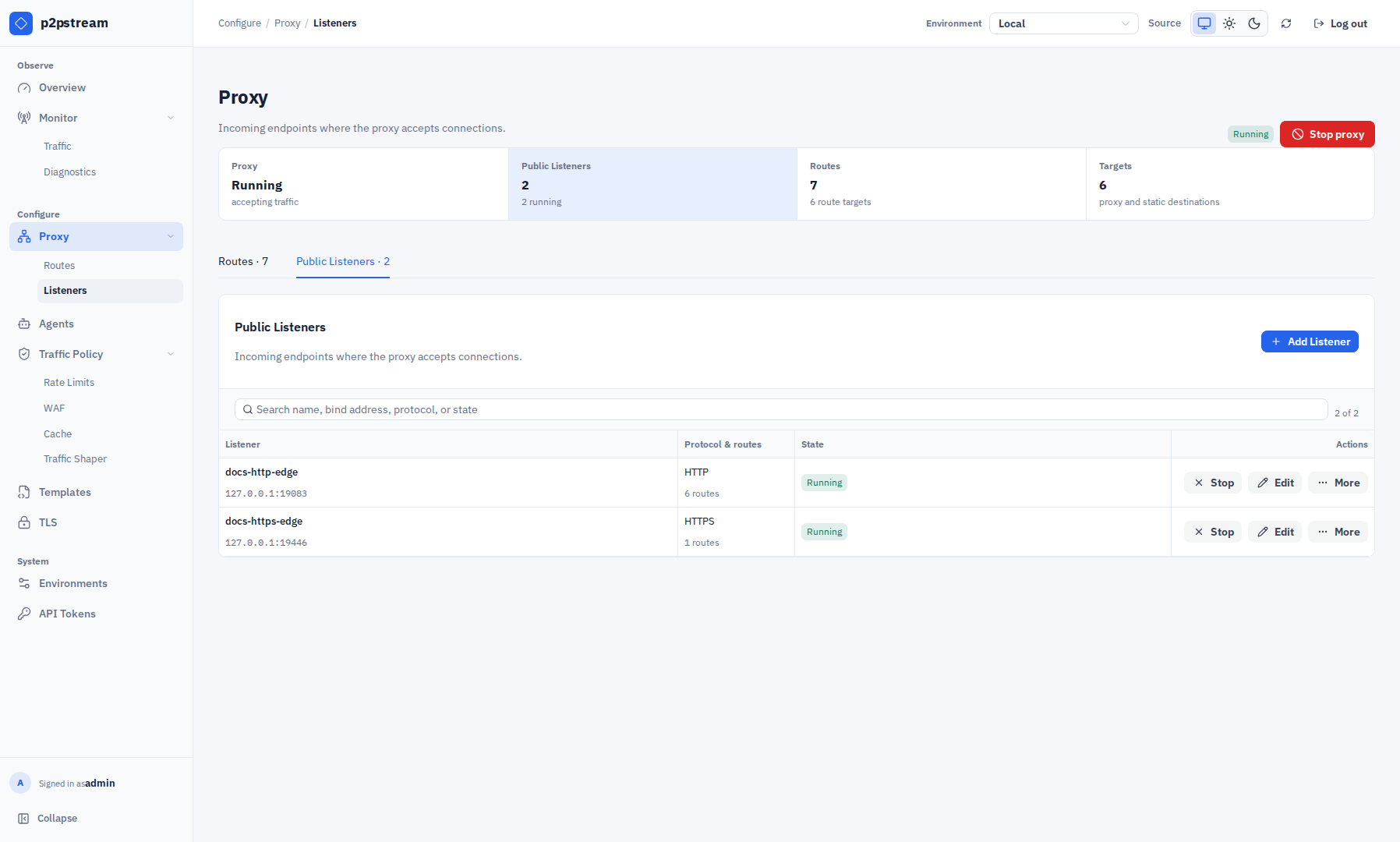

p2pstream Proxy Public Listeners tab showing proxy summary counts, listener search, HTTP and HTTPS bind addresses, route counts, runtime state, Stop, Edit, and More actions — Searchable public-listener table

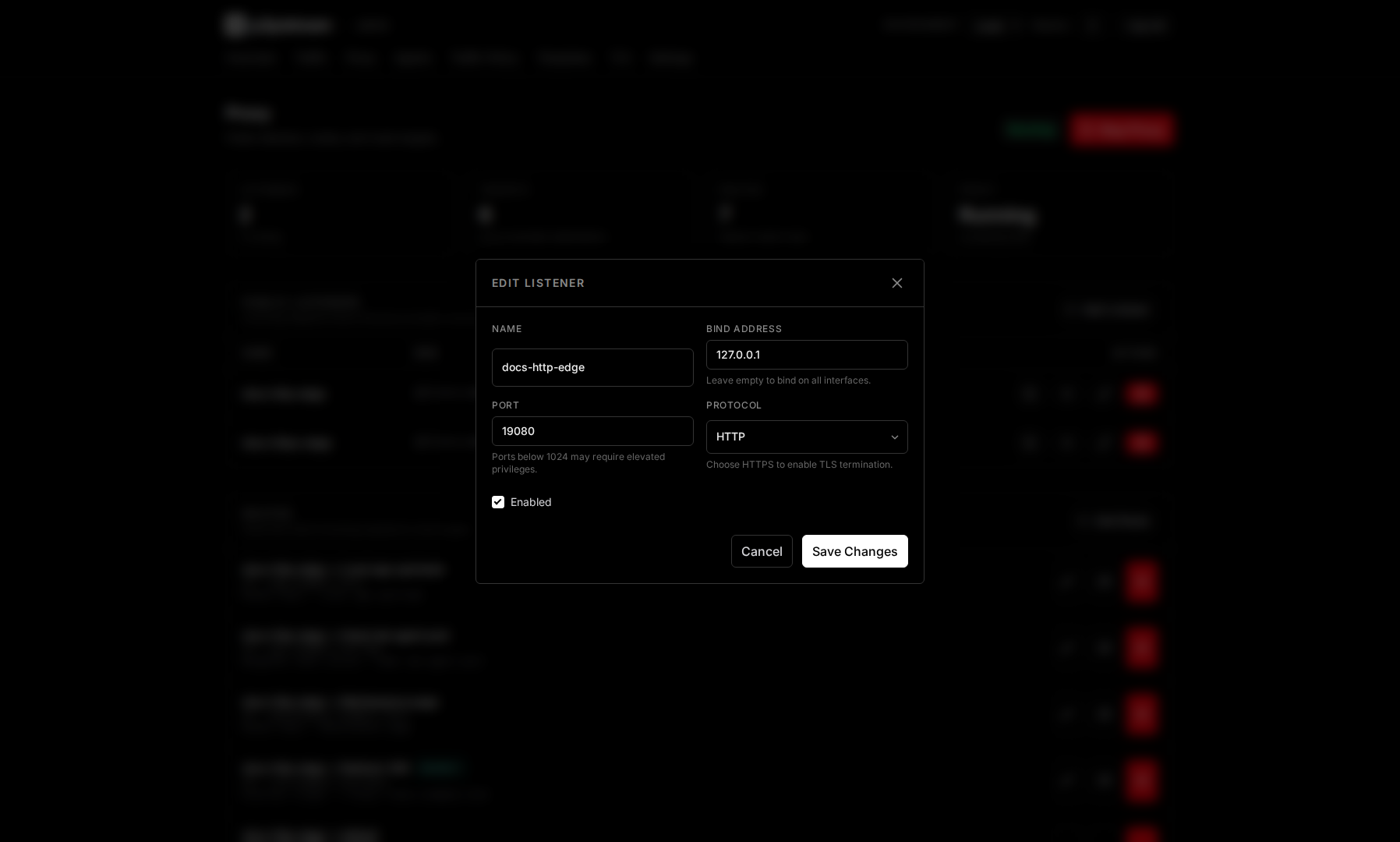

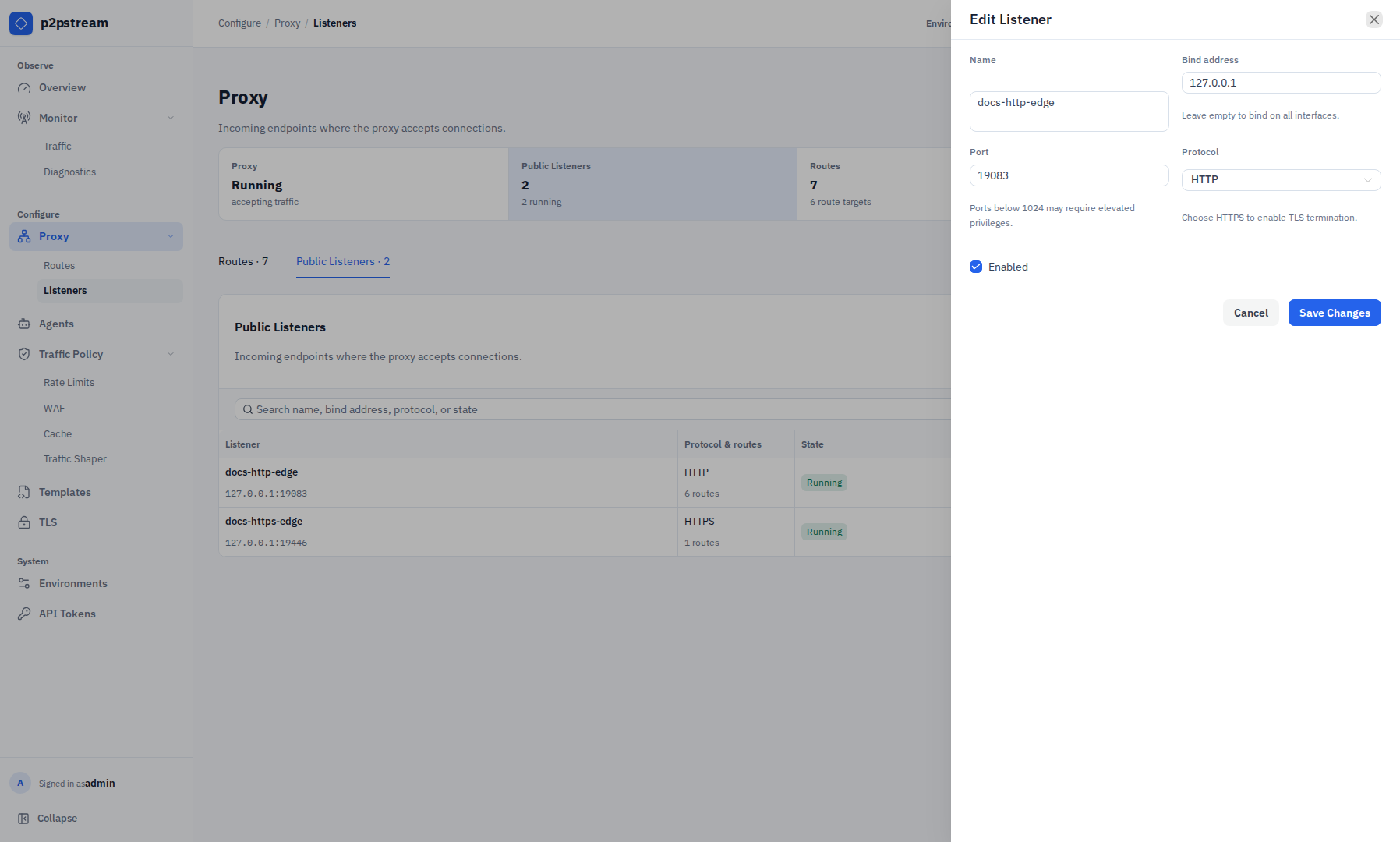

p2pstream Edit Listener drawer showing name, bind address, port, HTTP or HTTPS protocol, and enabled state — Edit Listener drawer

p2pstream Proxy Routes tab showing compact rows for listener and match, forward or redirect action, proxy or static targets, priority, enabled state, and edit clone and delete actions — Routes and targets table

p2pstream Edit Route drawer showing a direct proxy target's name, type, priority group, weight, URL, transport, header timeout, TLS verification, and enabled state — Direct proxy target fields

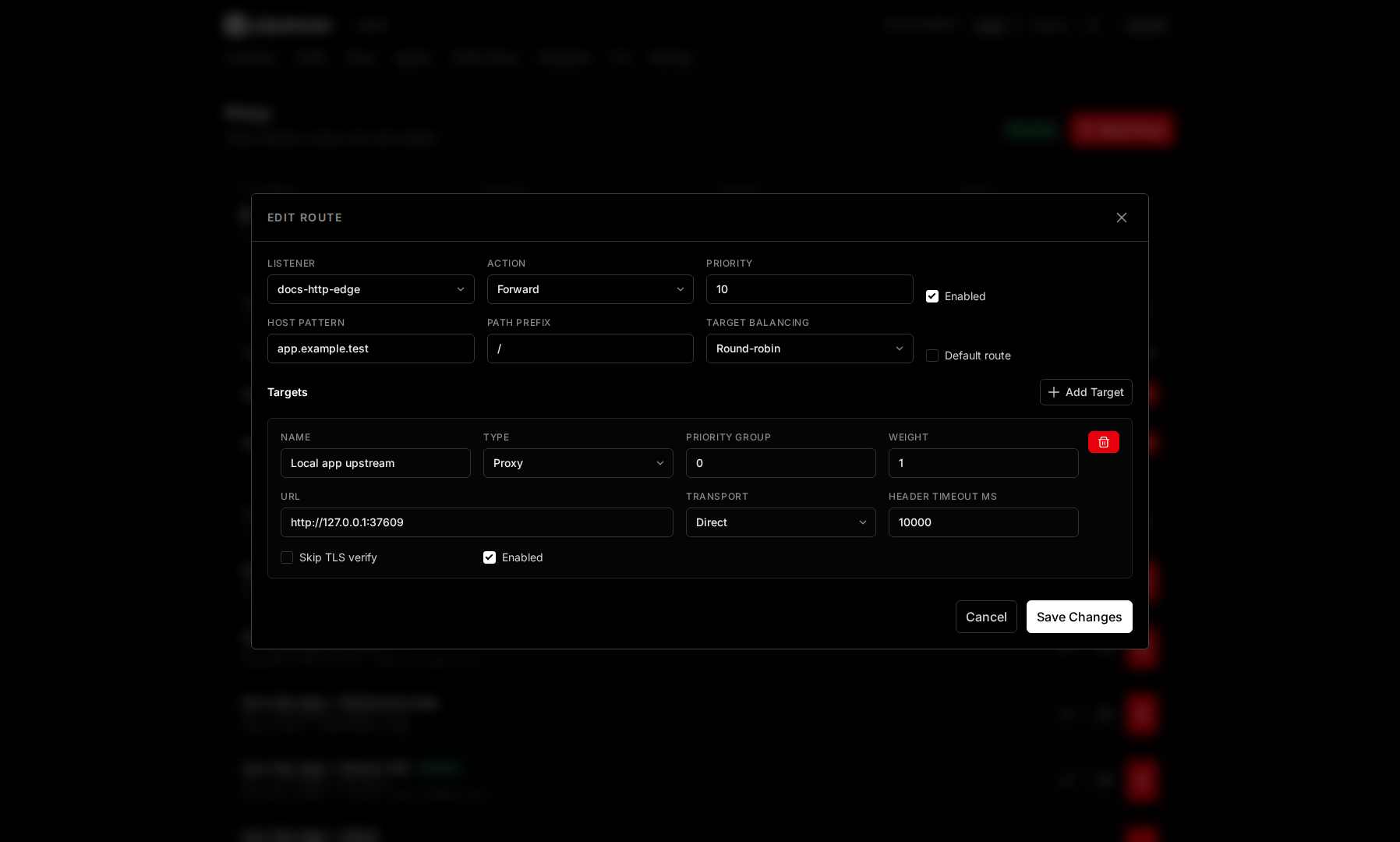

p2pstream Edit Route drawer showing listener, host pattern, path prefix, path security, action, route targets, fallback priority groups, and priority — Edit Route drawer

p2pstream route drawer showing a direct upstream target for app traffic — Direct route target

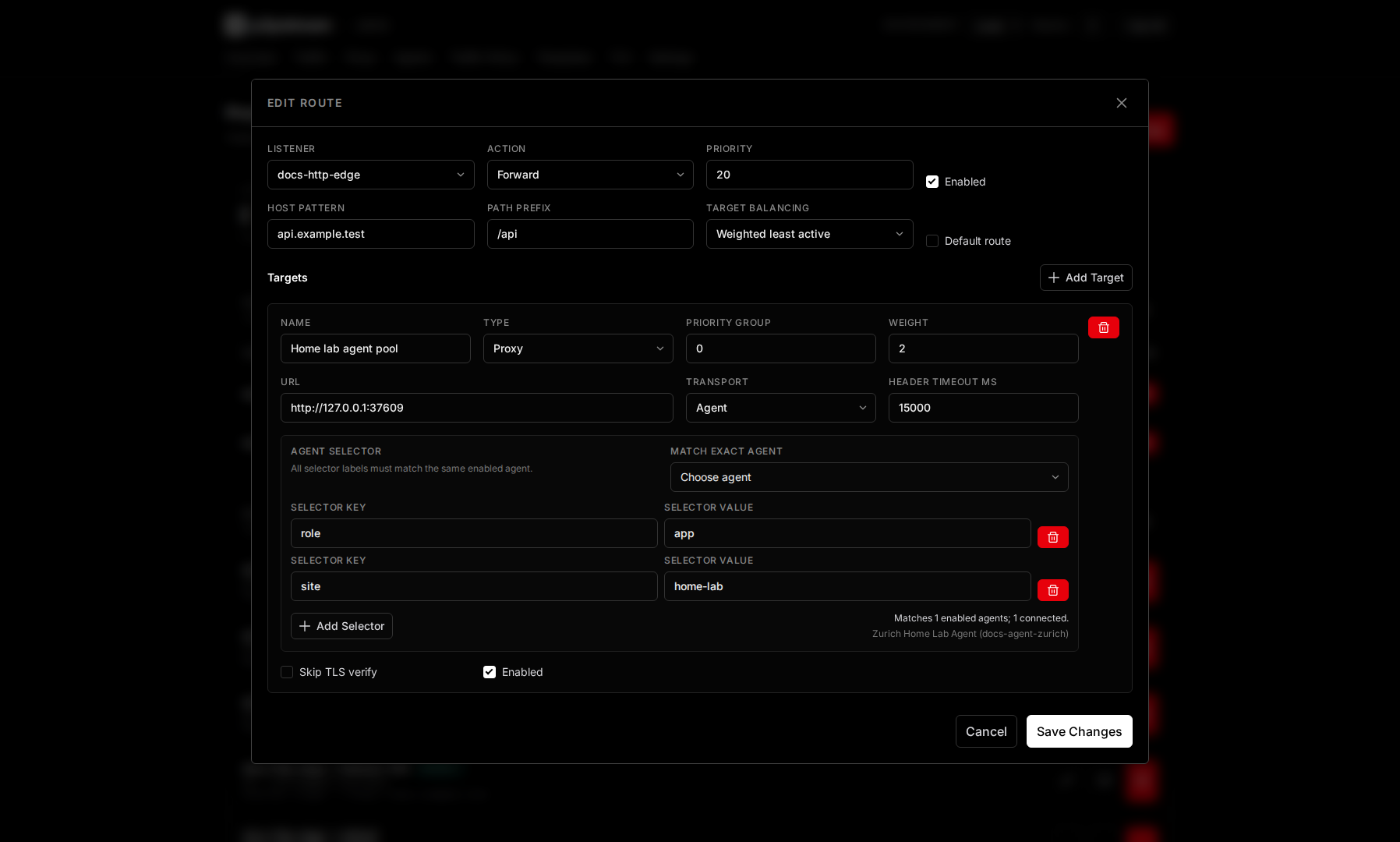

p2pstream route drawer showing an agent-selected target with label selectors — Agent route target

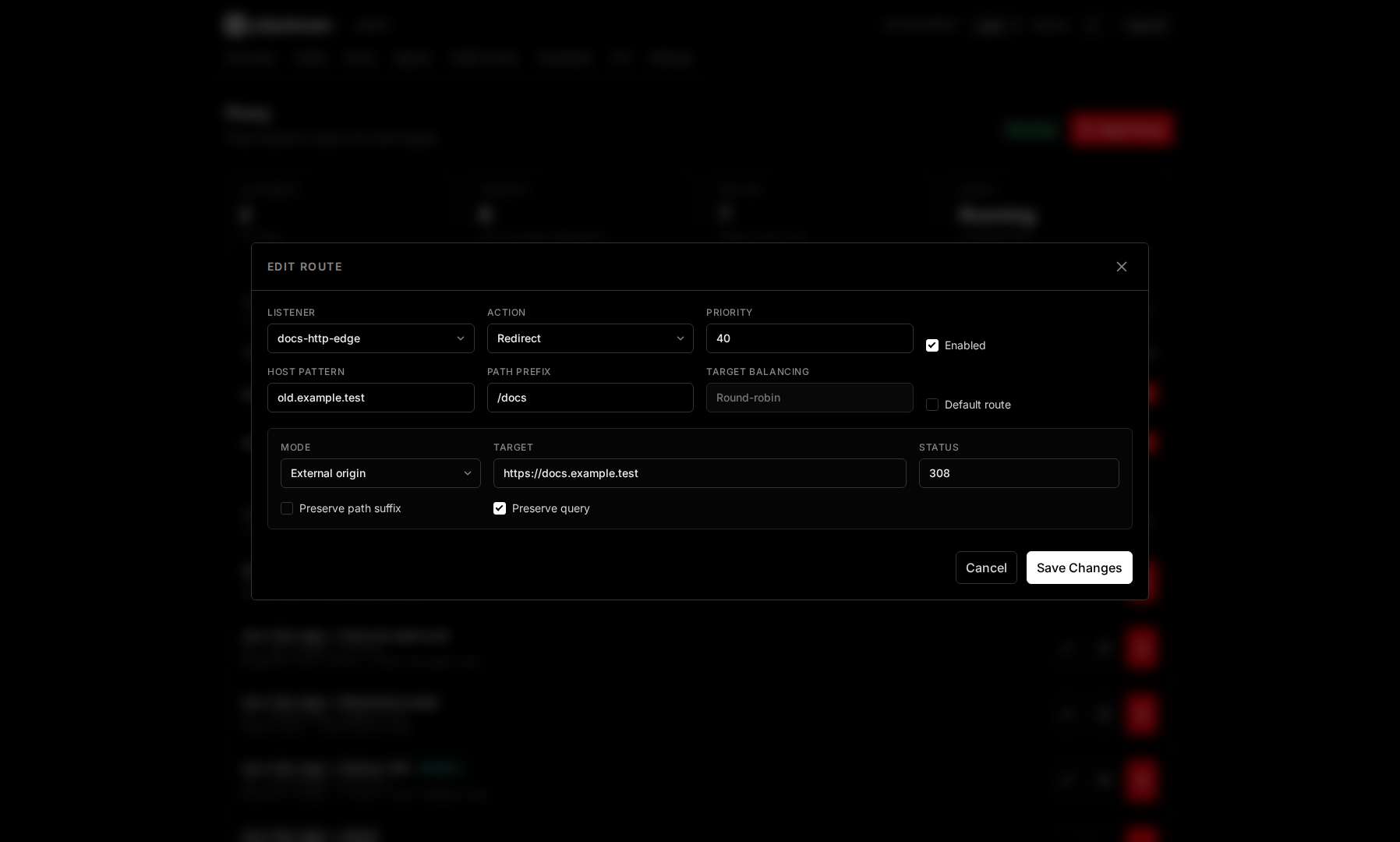

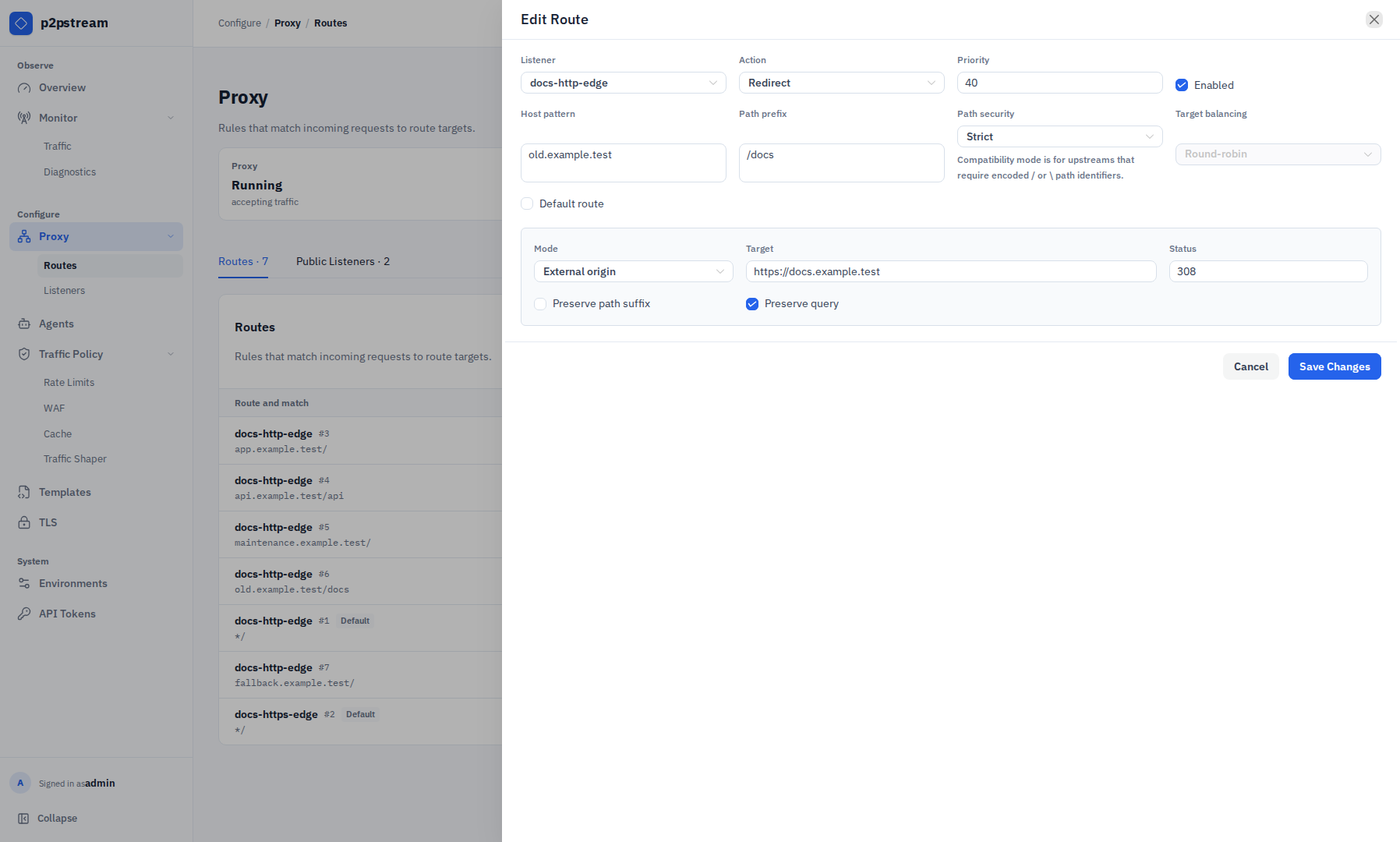

p2pstream route drawer showing an external redirect target with status, path-suffix preservation, and query preservation — Redirect route

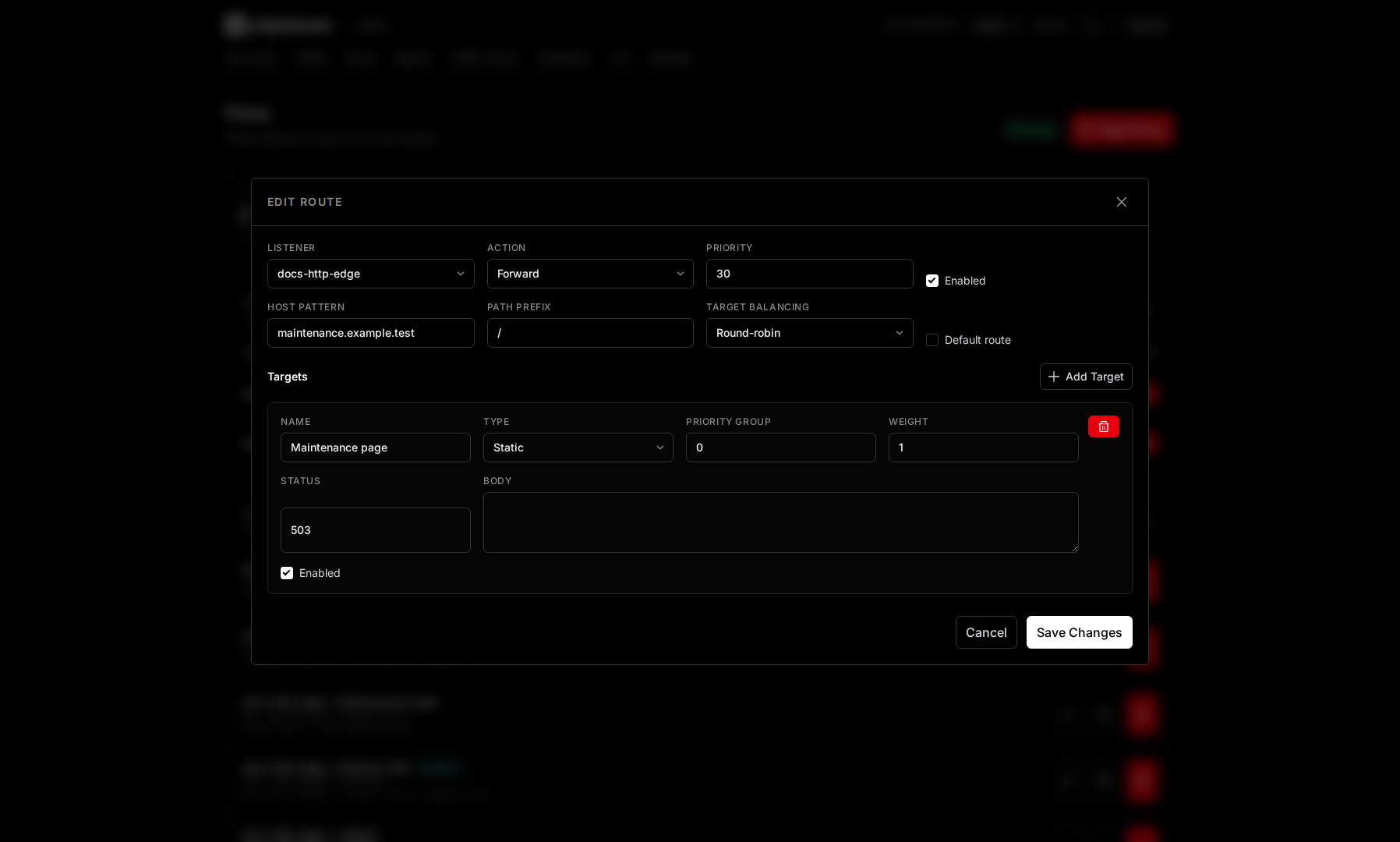

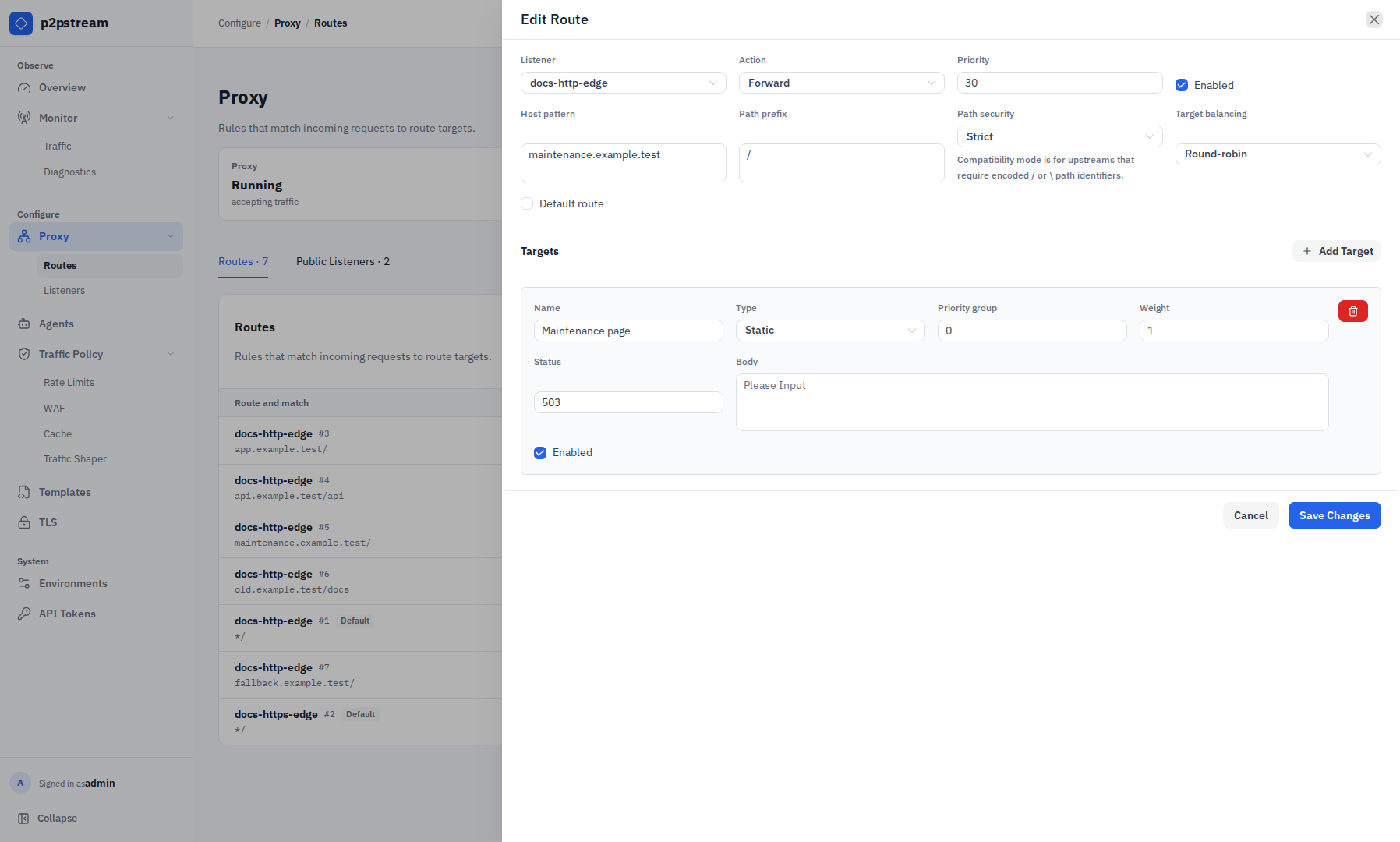

p2pstream Edit Route drawer showing the currently available static target controls for name, type, priority group, weight, status, inline body, and enabled state — Static target inline-body controls

Agents

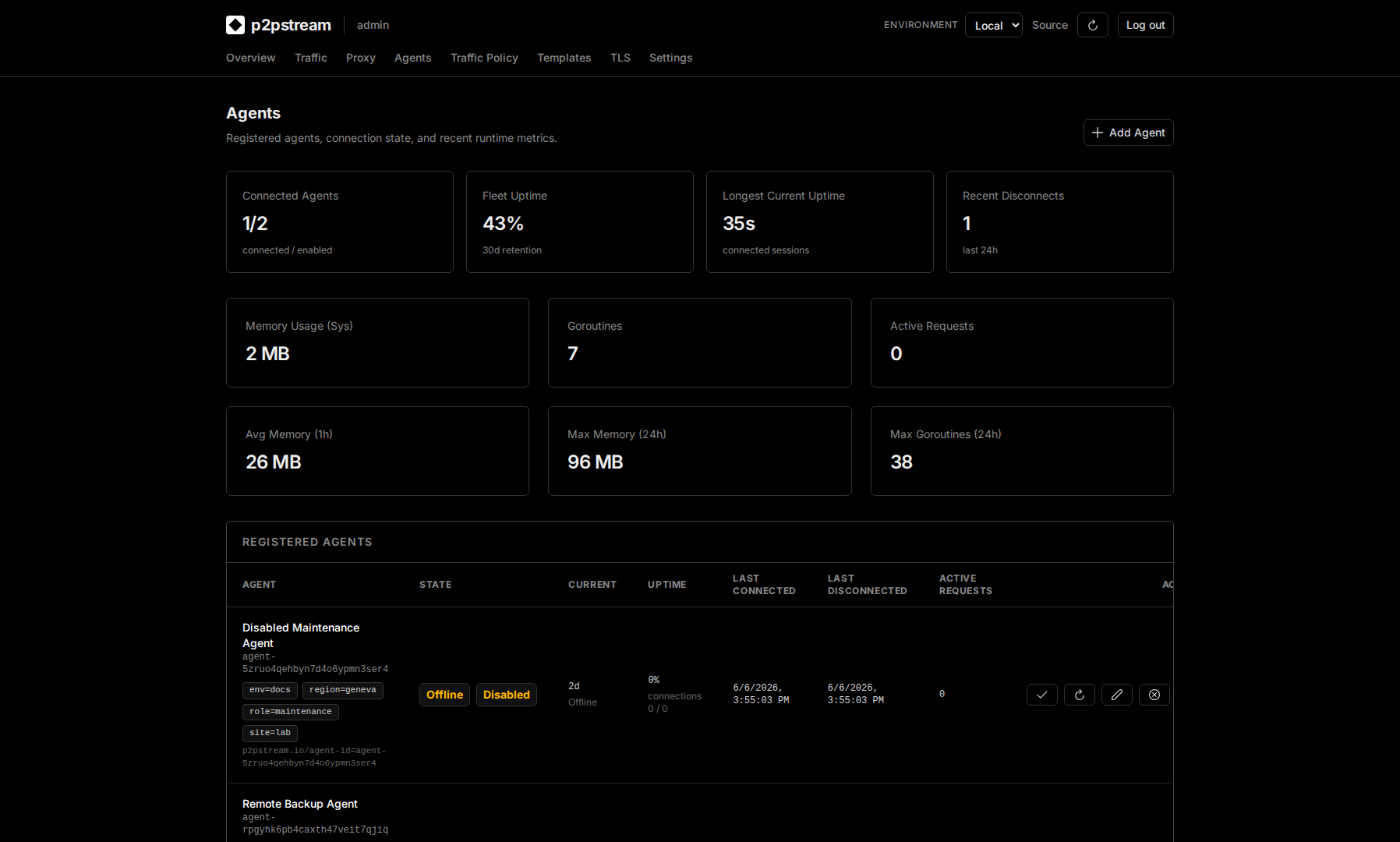

p2pstream Agents Fleet tab showing degraded fleet summary, connection and uptime metrics, attention-first searchable table, identity disclosures, health, load, Investigate, Edit, and More actions — Attention-first agent fleet

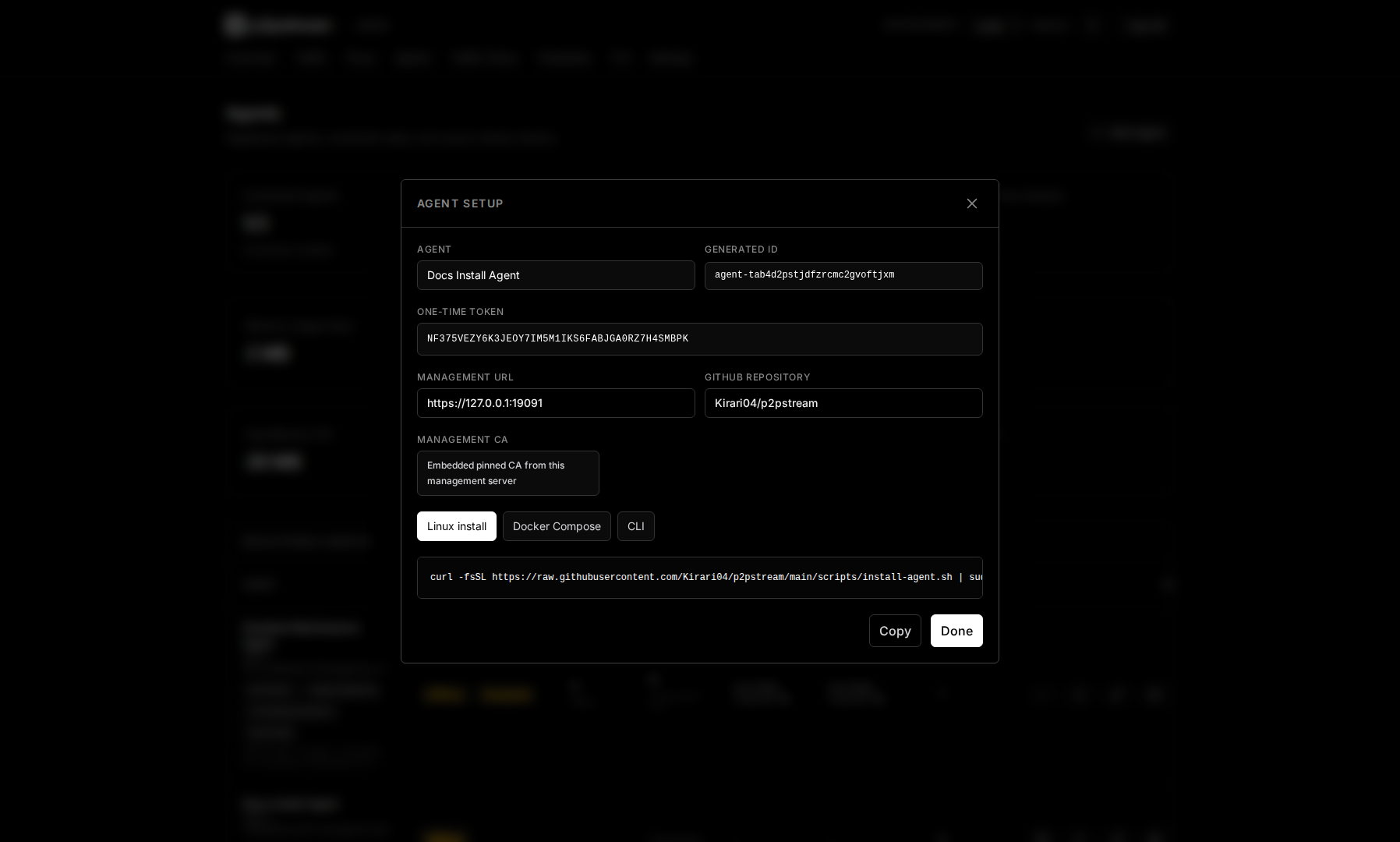

p2pstream agent setup handoff showing generated identity, one-time token, copy state, install command options, and advanced settings — One-time agent setup handoff

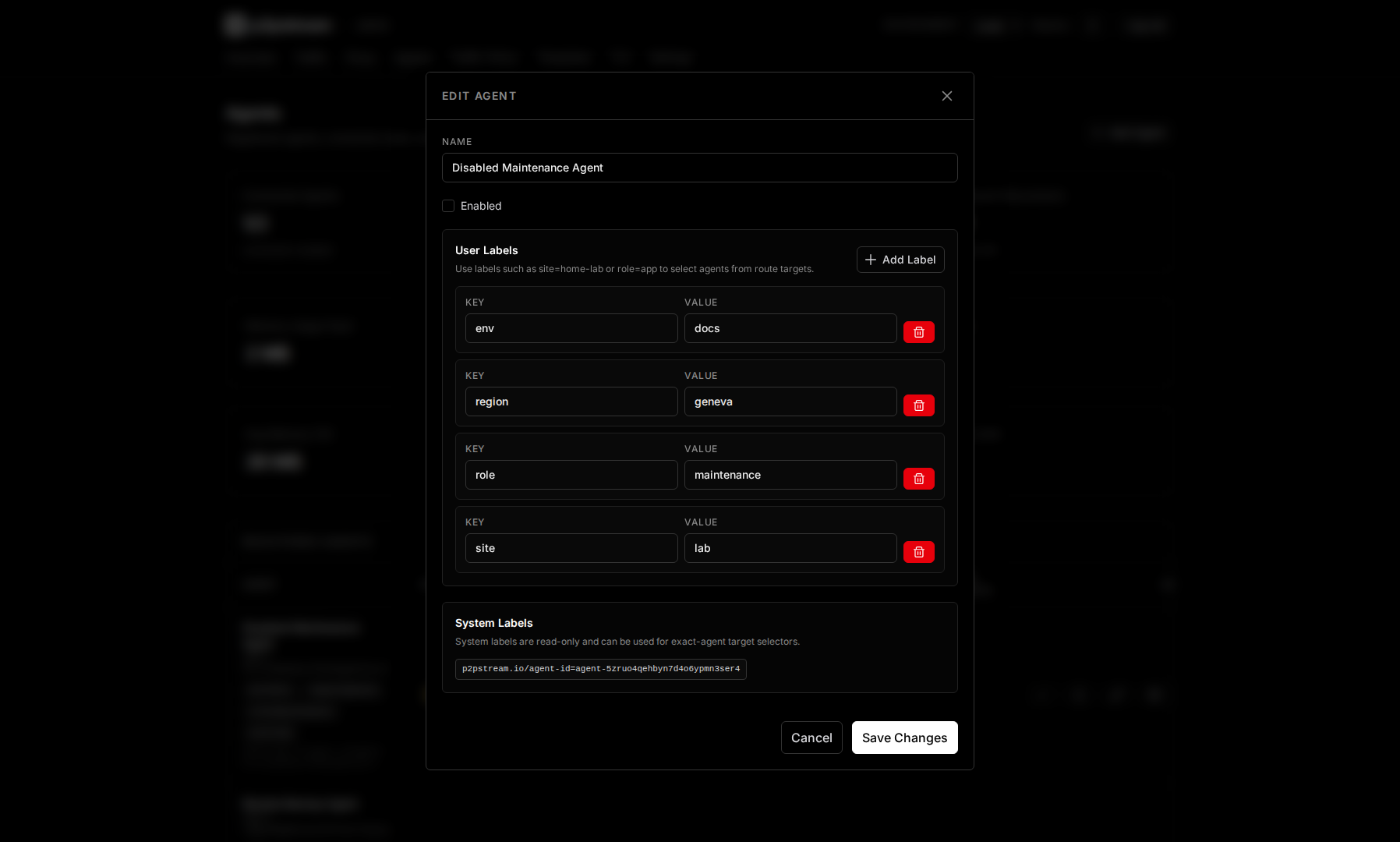

p2pstream agent drawer showing user labels and read-only system labels for route target selection — Agent labels drawer

Traffic Policies

p2pstream Traffic Policy WAF tab showing rule counts, execution order, Request Tester, filterable WAF rules, captcha providers, and Visitor identity and GeoIP settings — WAF rules, captcha providers, and visitor identity

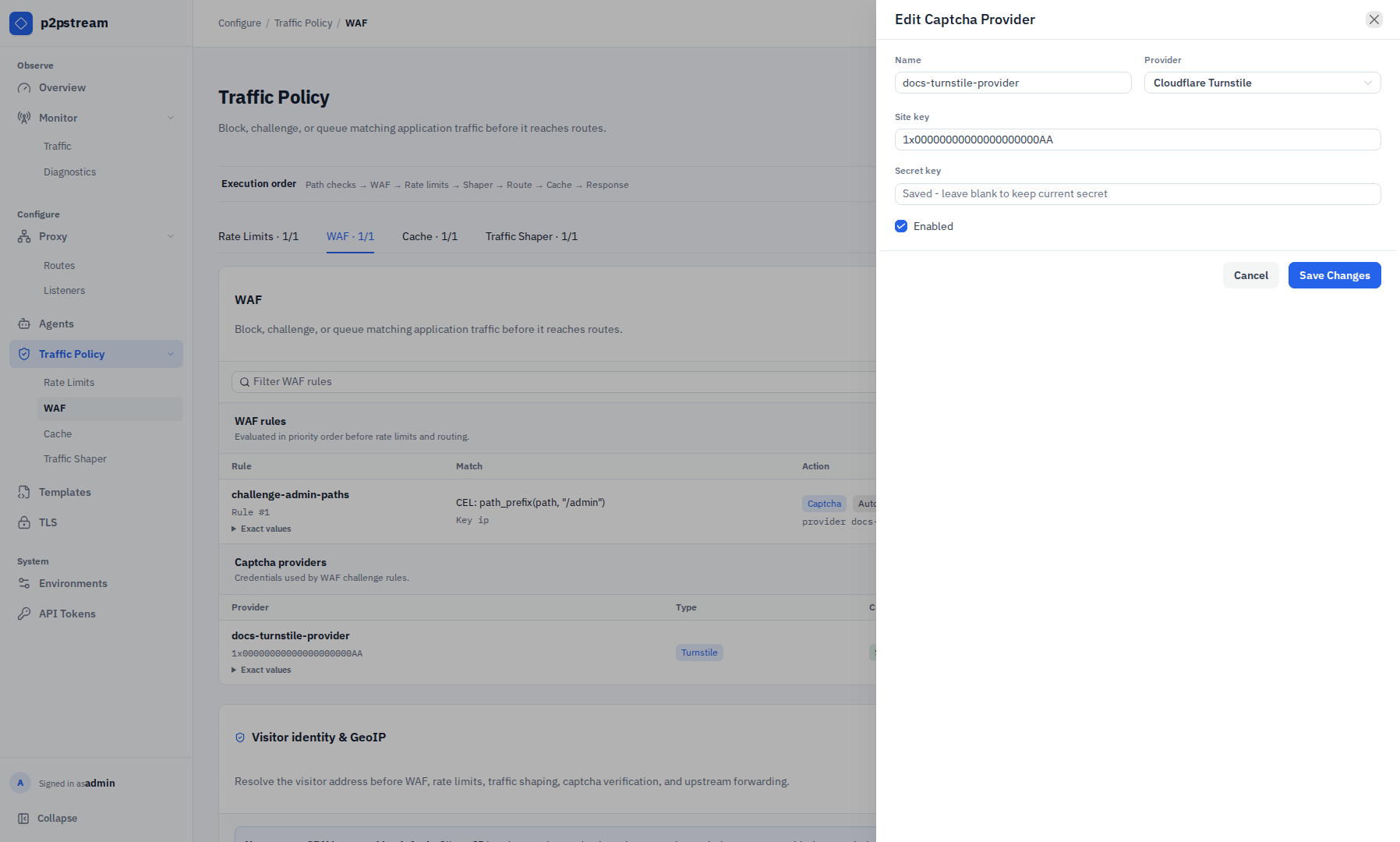

p2pstream Edit Captcha Provider drawer showing provider type, site key, saved-secret state, and enabled state — Edit Captcha Provider drawer

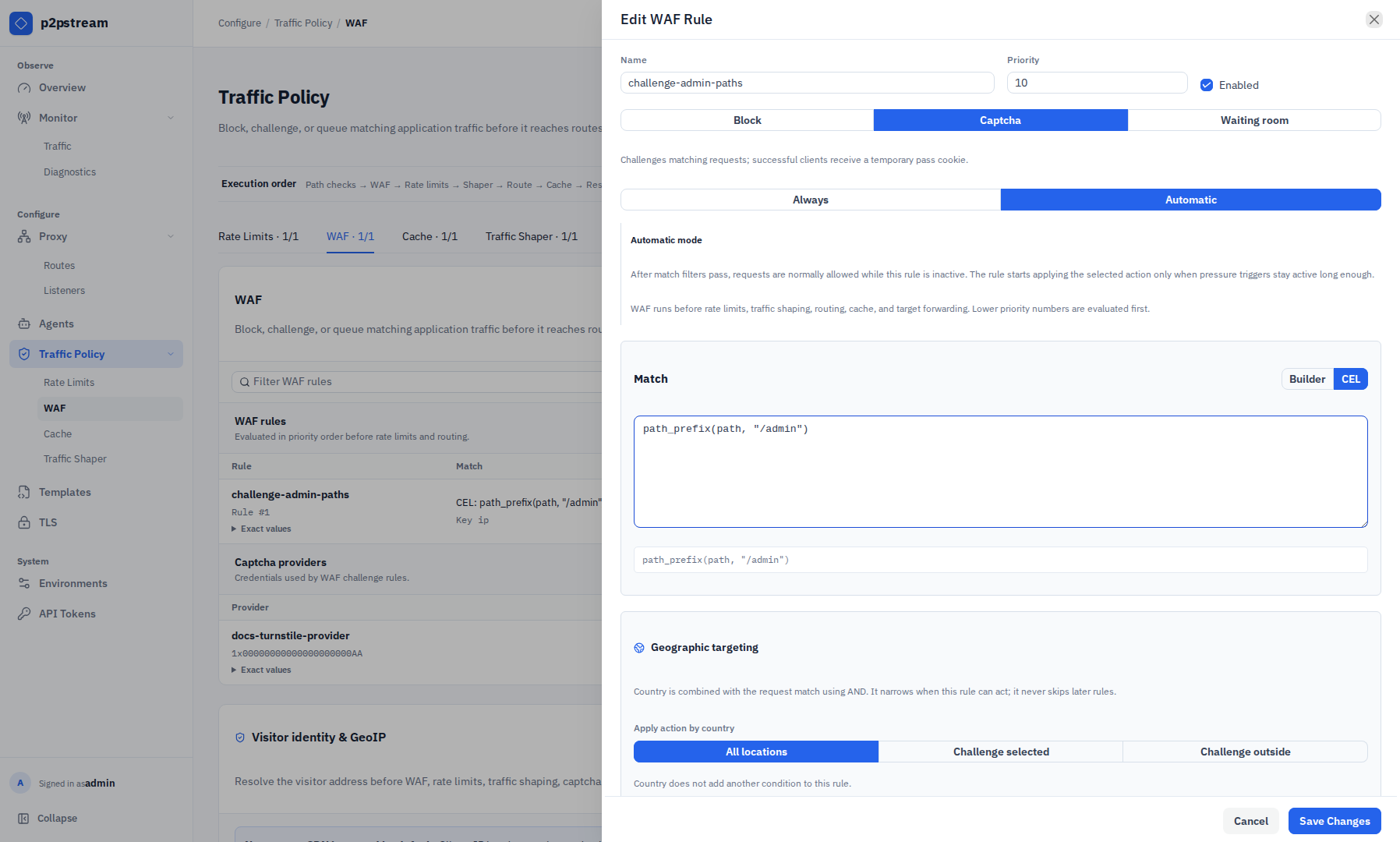

p2pstream Edit WAF Rule drawer showing name, priority, enabled state, Captcha action, Automatic activation, CEL match, and geographic targeting — WAF action, activation, match, and geographic targeting

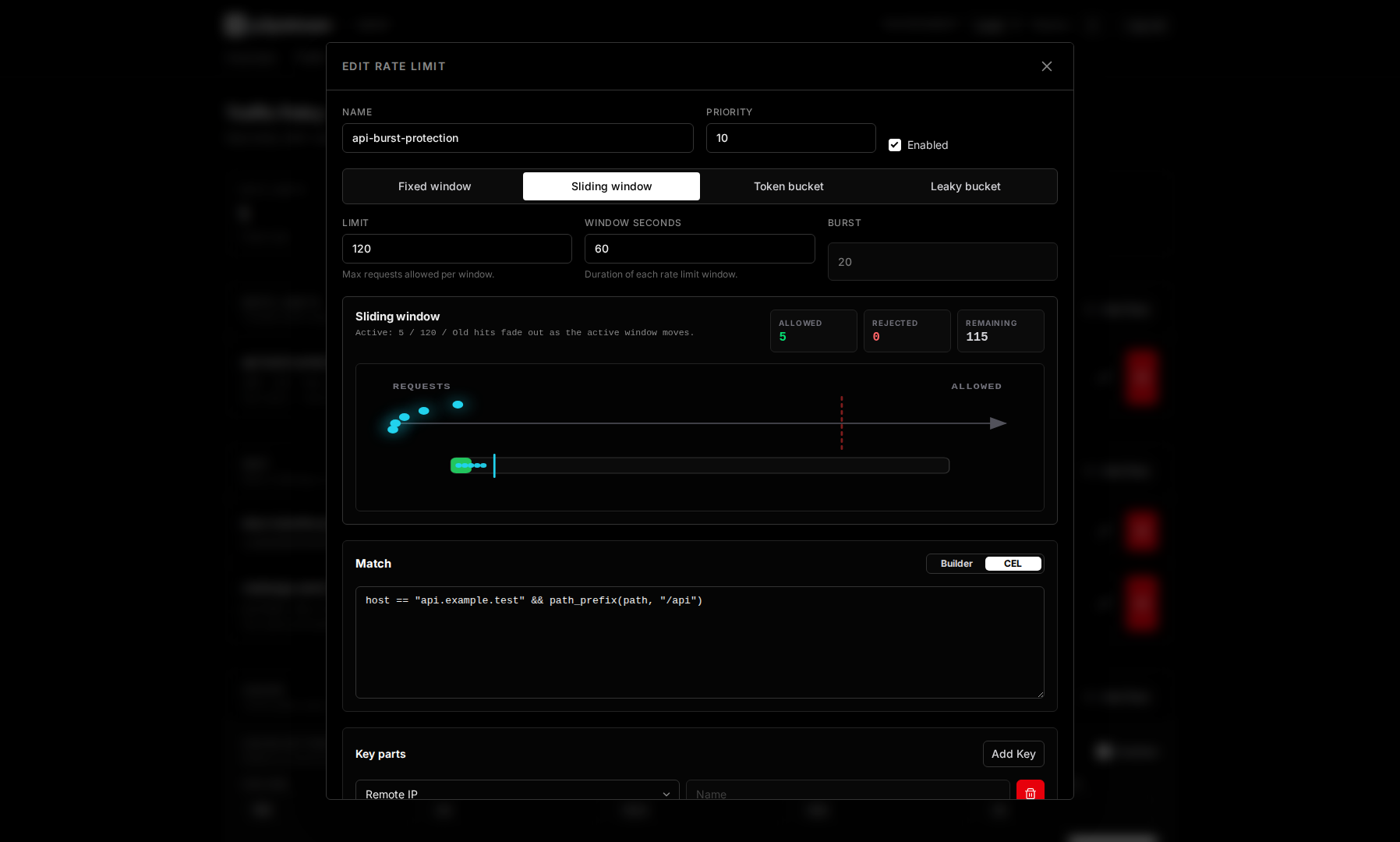

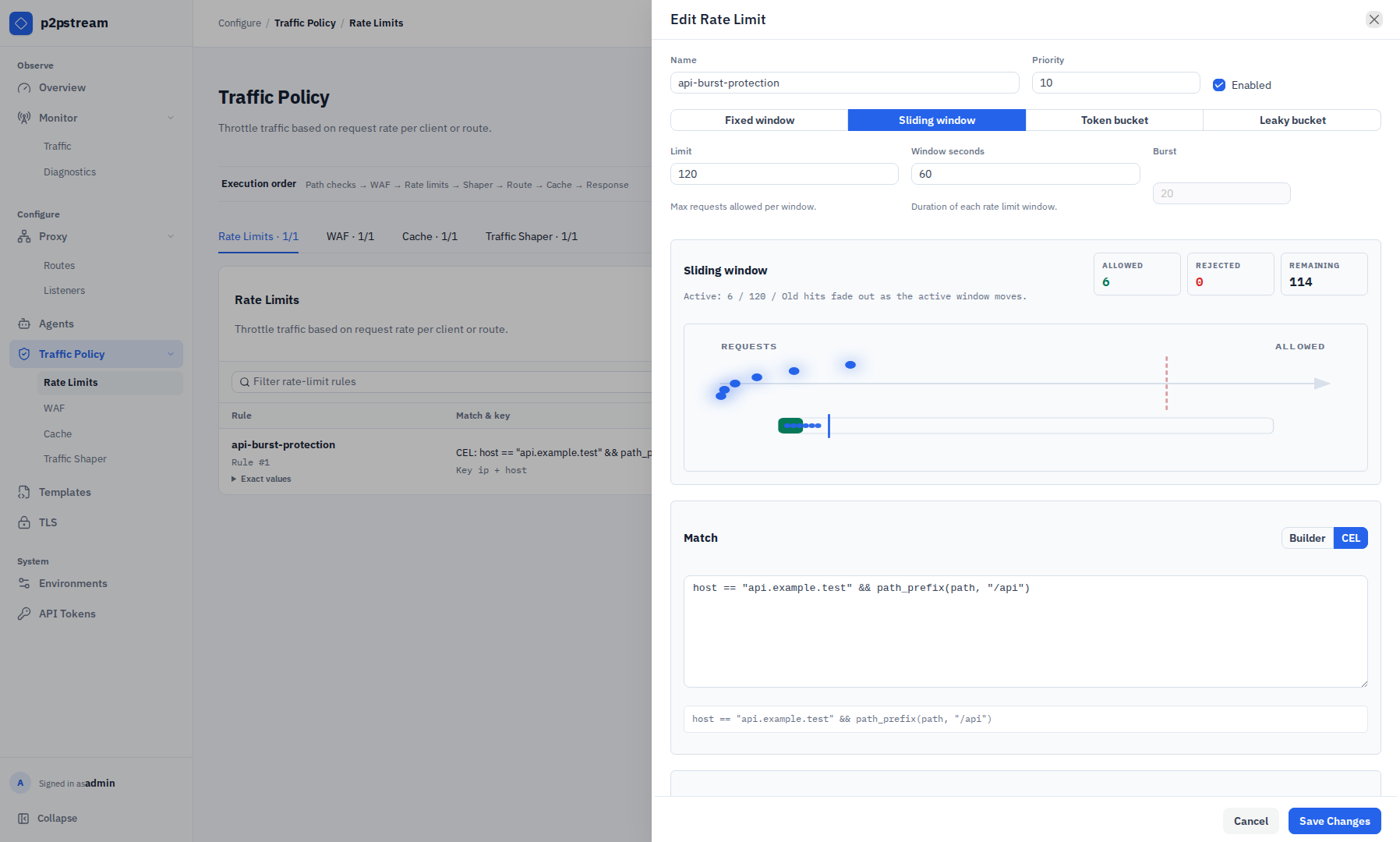

p2pstream Edit Rate Limit drawer showing name, priority, enabled state, algorithm choices, limit, window, burst, live budget preview, and CEL match — Rate-limit algorithm, budget preview, and match

p2pstream Traffic Policy Traffic Shaper tab showing a filterable compact table with match and key, upload and download budget, scope, priority, state, and actions — Traffic Shaper tab

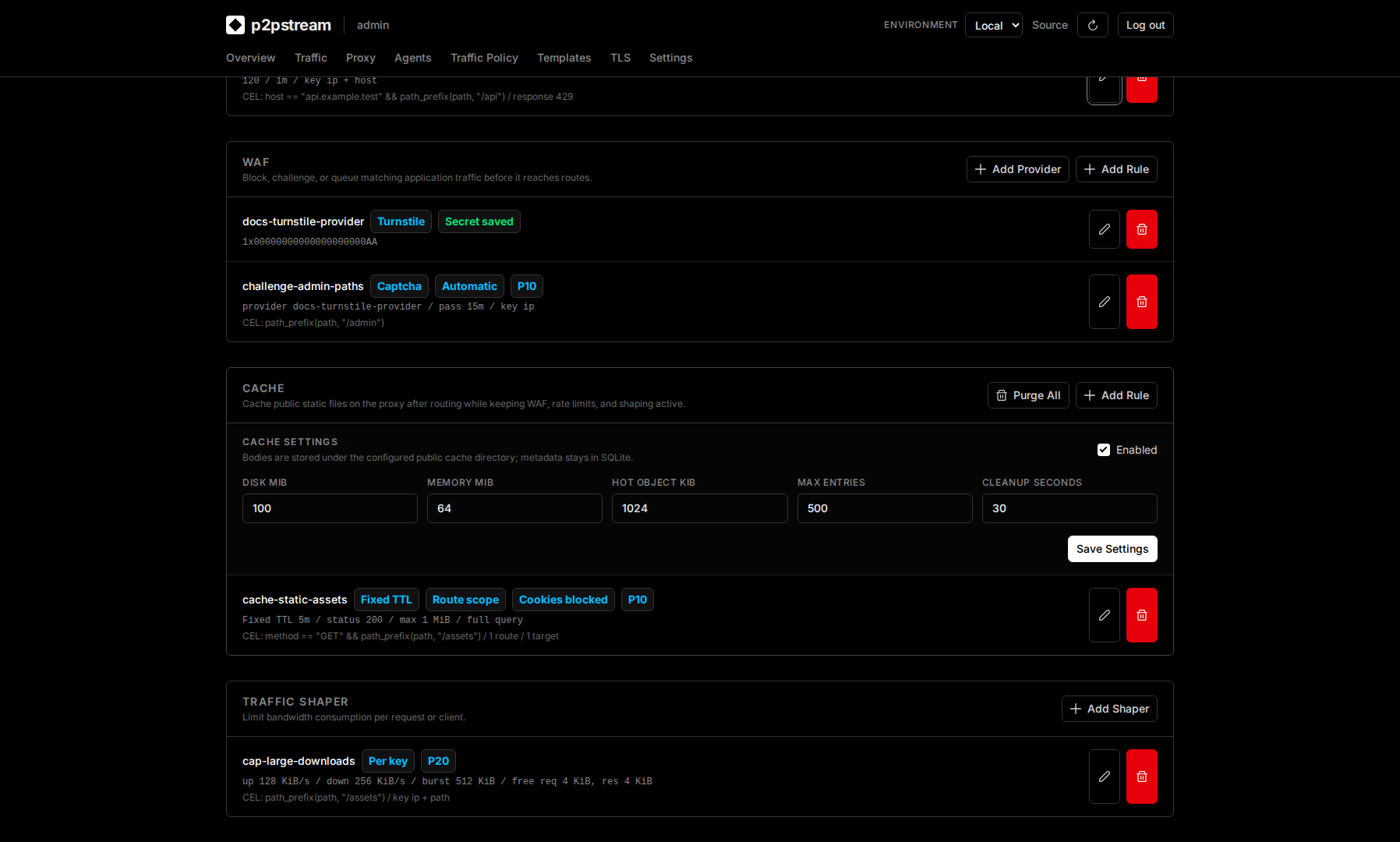

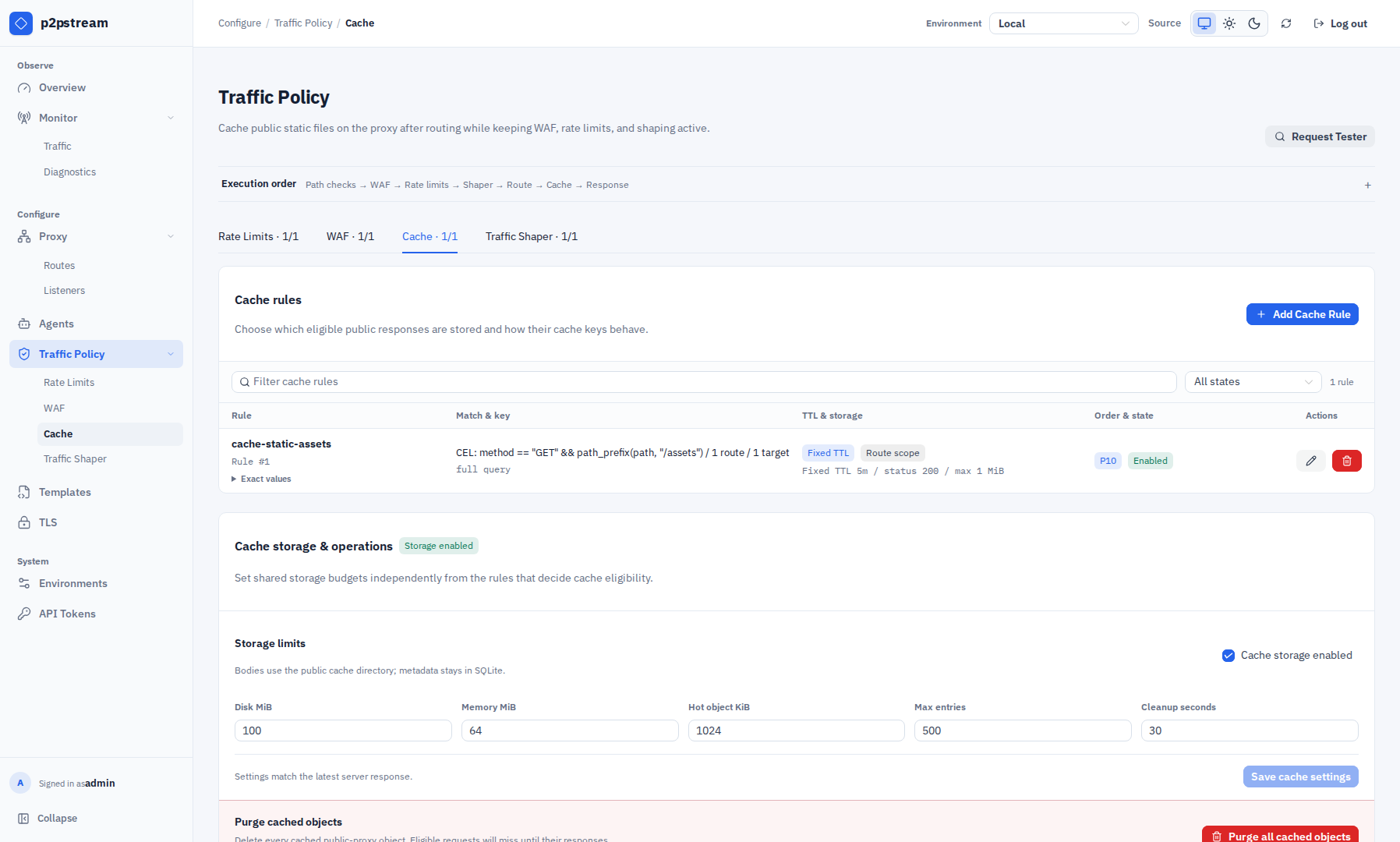

p2pstream Traffic Policy Cache tab showing filterable cache rules plus cache storage enabled, disk, memory, hot-object, entry, cleanup, save, and purge controls — Cache rules and storage operations

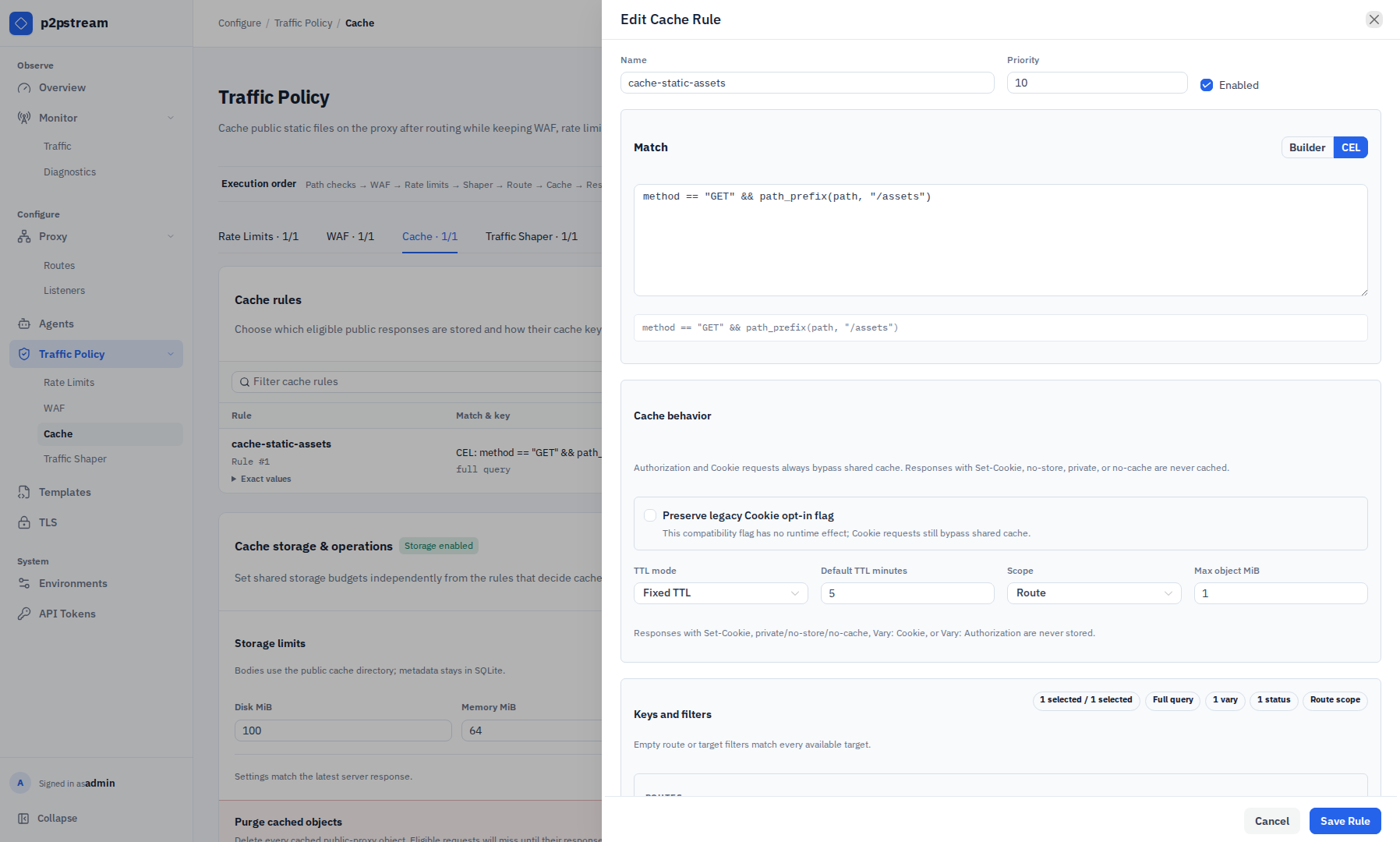

p2pstream cache rule drawer showing match builder, route and target filters, TTL, query handling, vary headers, status codes, and object limits — Cache rule drawer

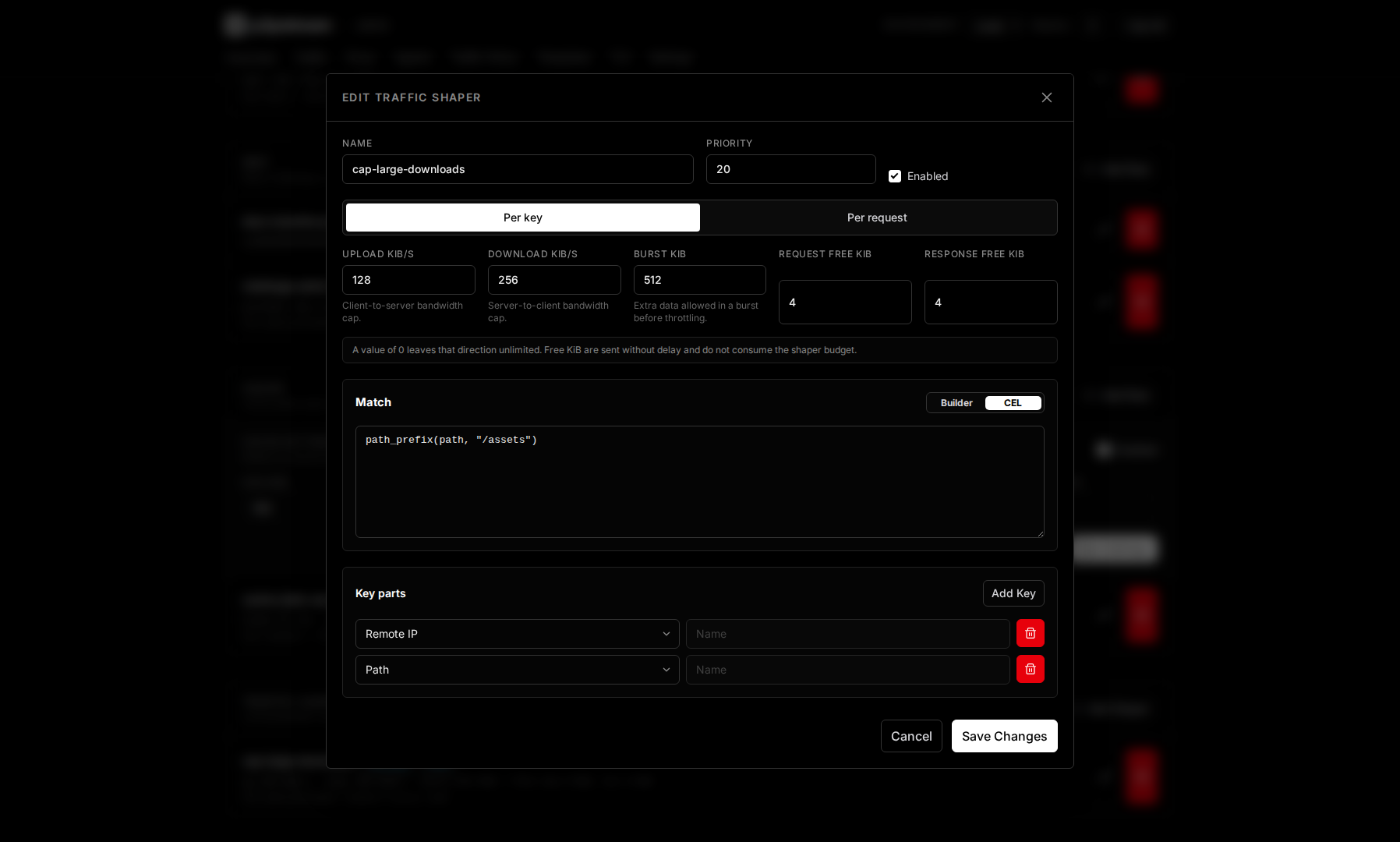

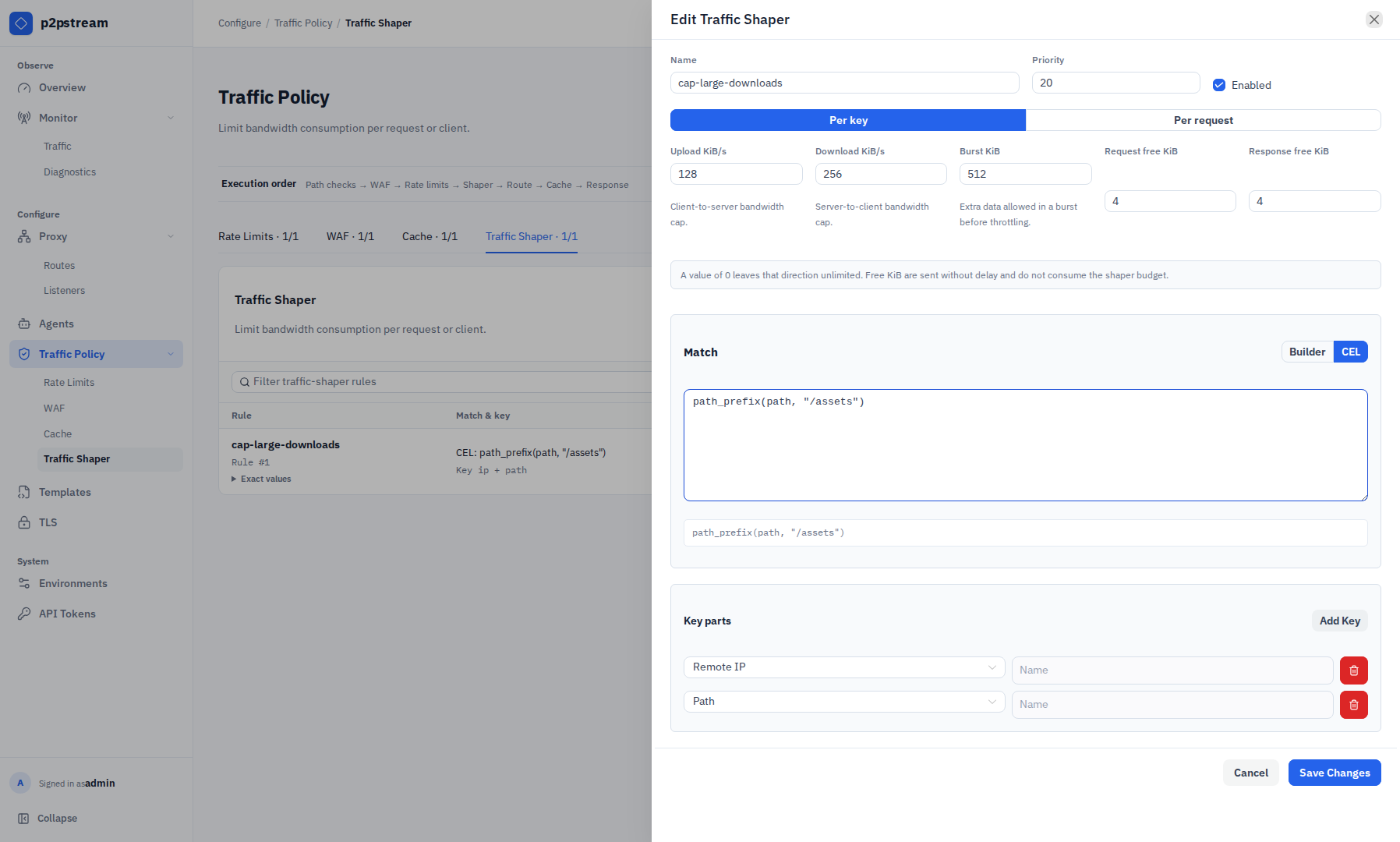

p2pstream traffic shaper drawer showing request match, budget scope, key parts, upload and download byte rates, burst, and exempt bytes — Traffic shaper drawer

Response Templates

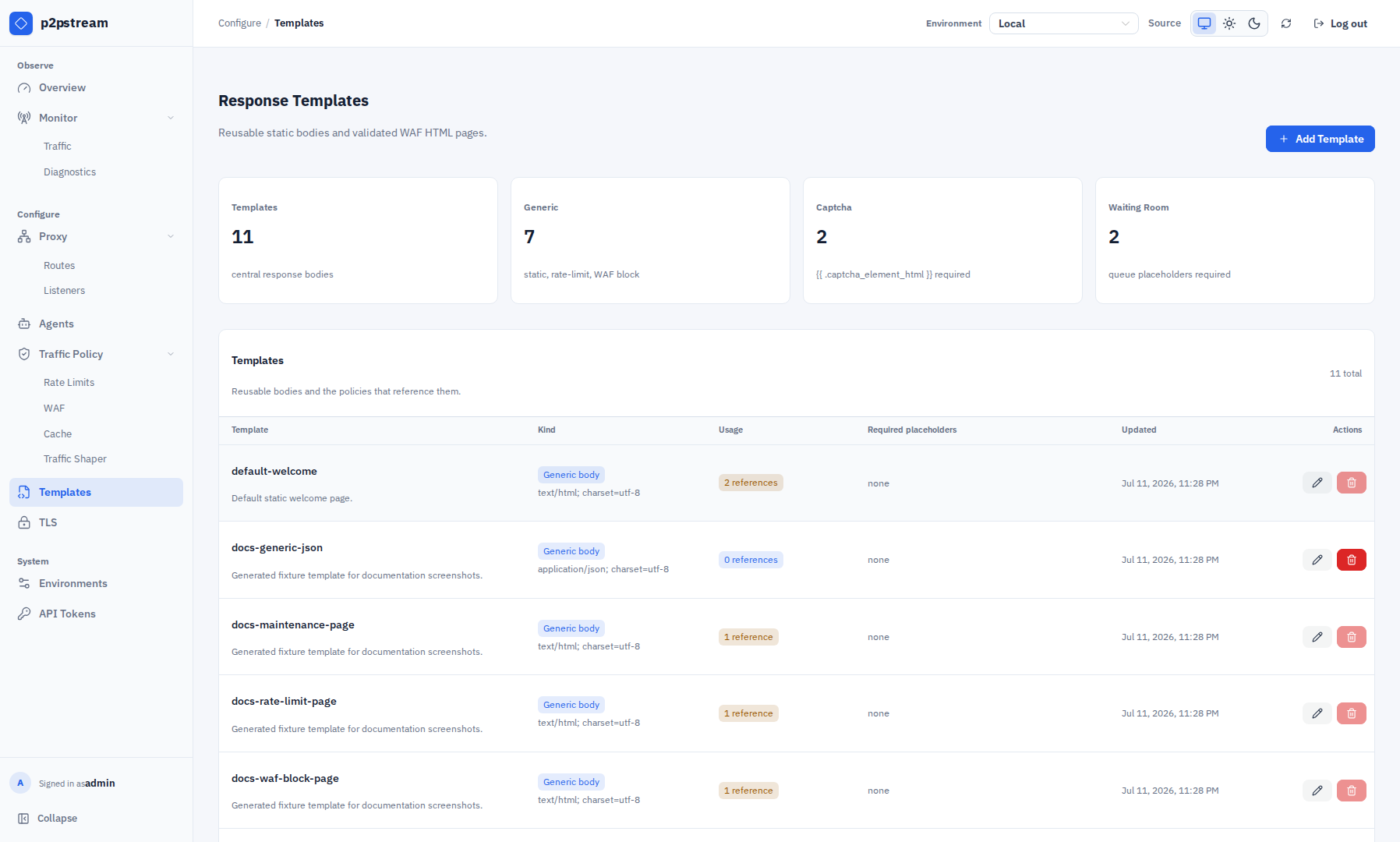

p2pstream Response Templates page showing kind summary cards and a compact table with description, kind, content type, usage count, required placeholders, updated time, and actions — Response template inventory

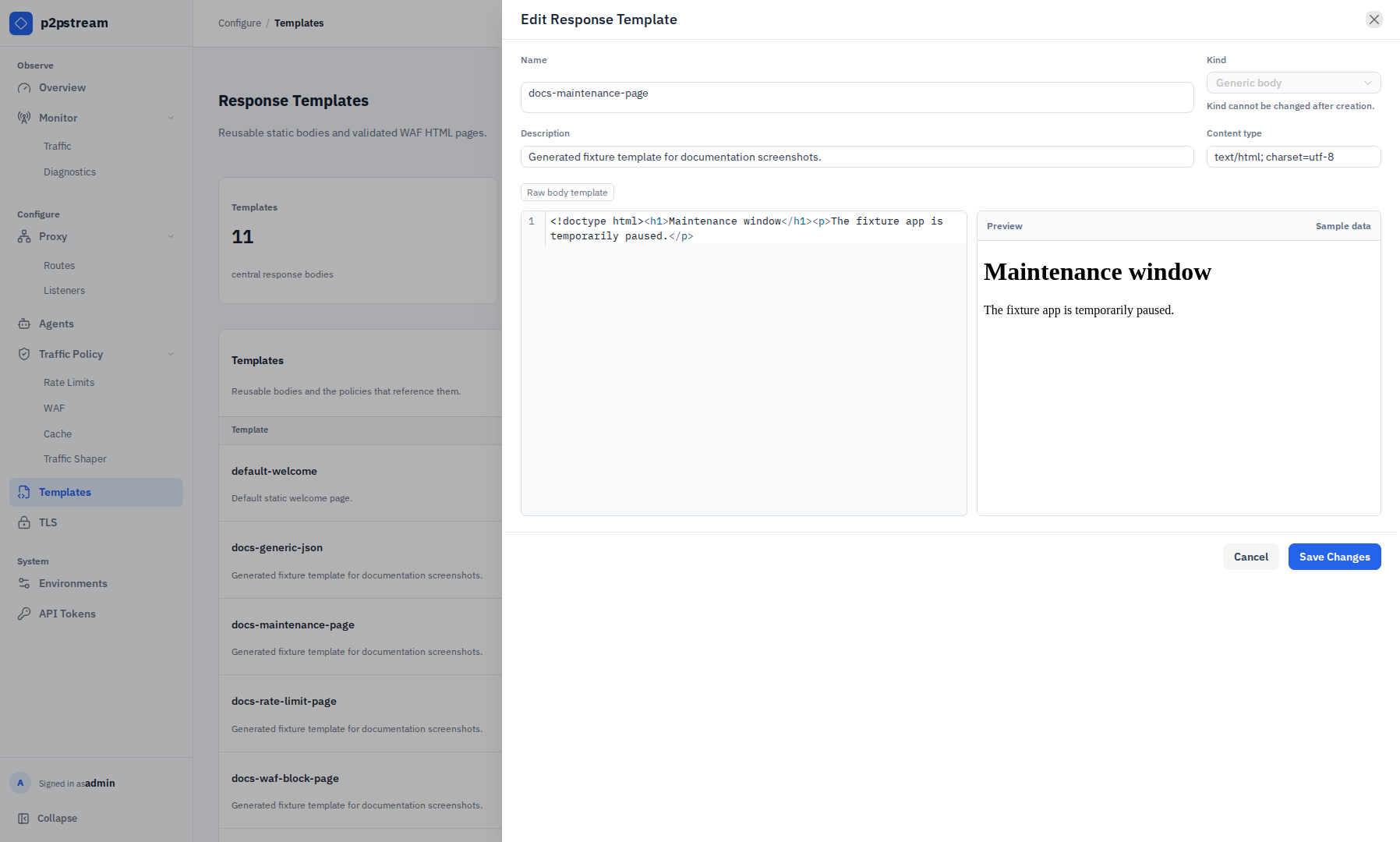

p2pstream Edit Response Template drawer showing name, locked kind with immutability guidance, content type, description, body editor, and preview — Template drawer with immutable kind

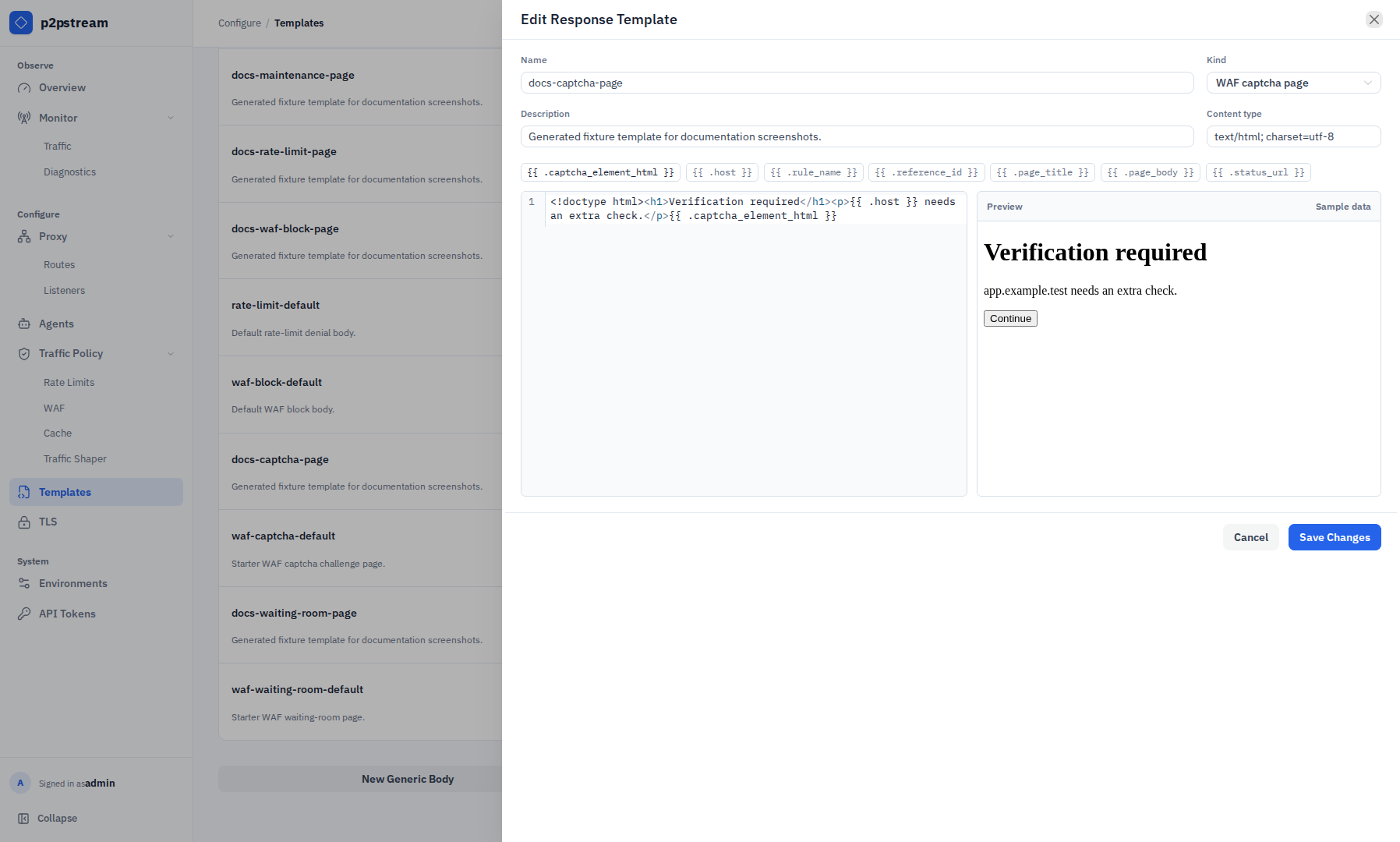

p2pstream WAF response template drawer showing allowed dynamic placeholders and rendered sample values for captcha or waiting-room pages — WAF template placeholders

TLS

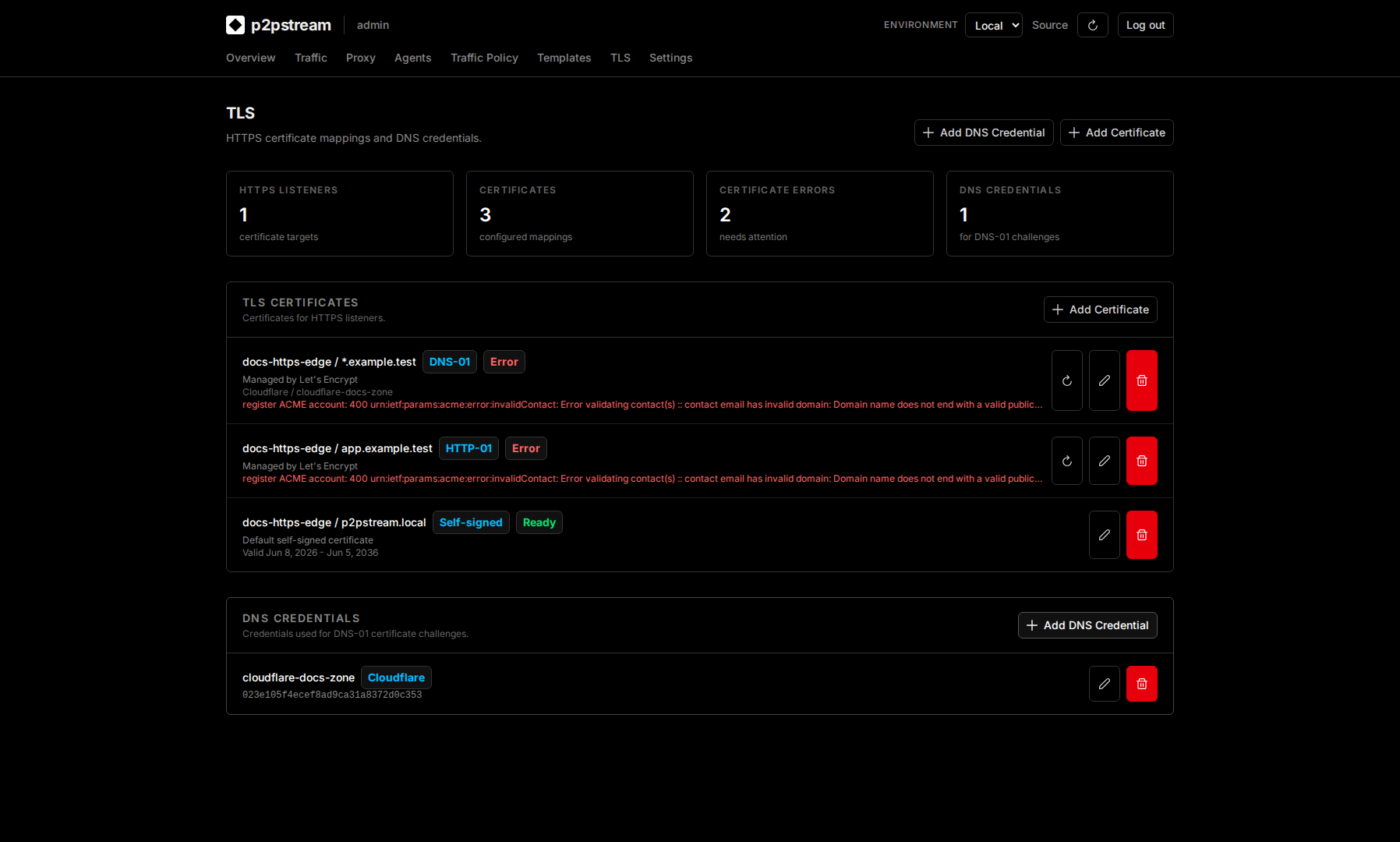

p2pstream TLS page showing HTTPS listener and certificate summary cards, mapping status and lifecycle, ACME errors and retry actions, and a separate DNS credentials table — TLS certificate and DNS credential inventory

p2pstream Edit TLS Mapping drawer showing HTTP-01 selected, Let's Encrypt CA environment, hostname pattern, HTTPS listener, ACME email, and enabled state — Edit HTTP-01 mapping

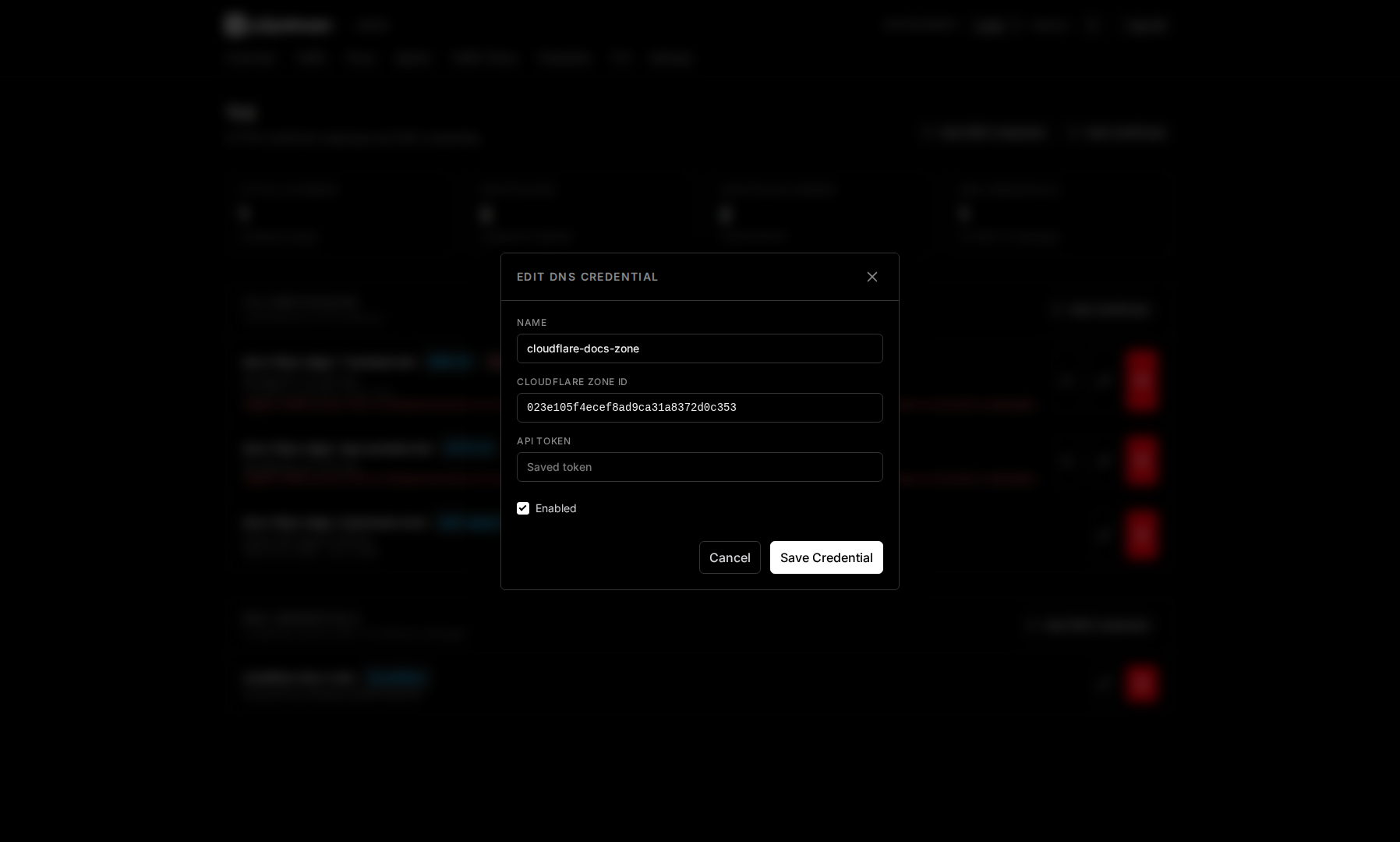

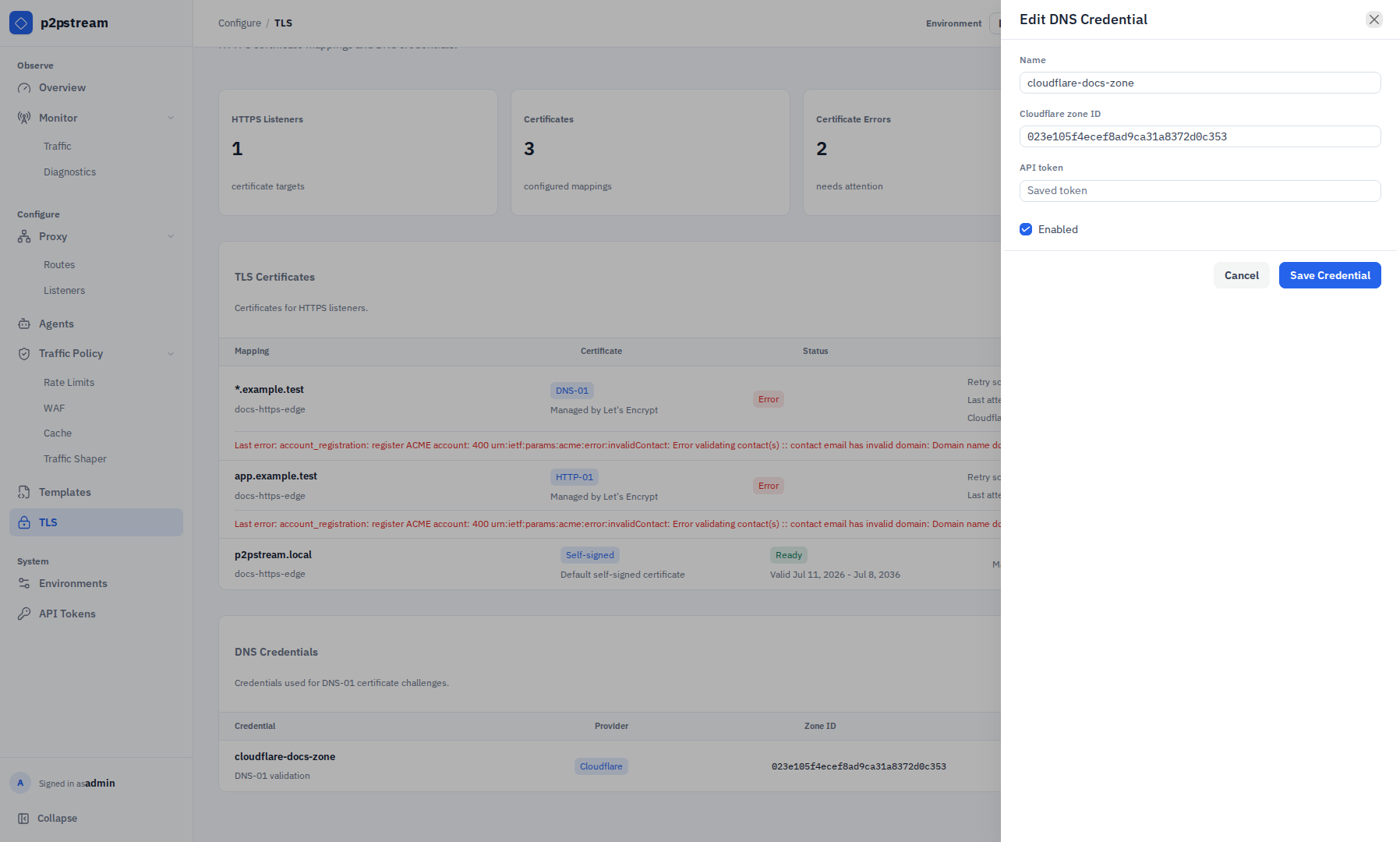

p2pstream Edit DNS Credential drawer showing name, Cloudflare zone ID, saved API-token state, and enabled state — Edit DNS credential

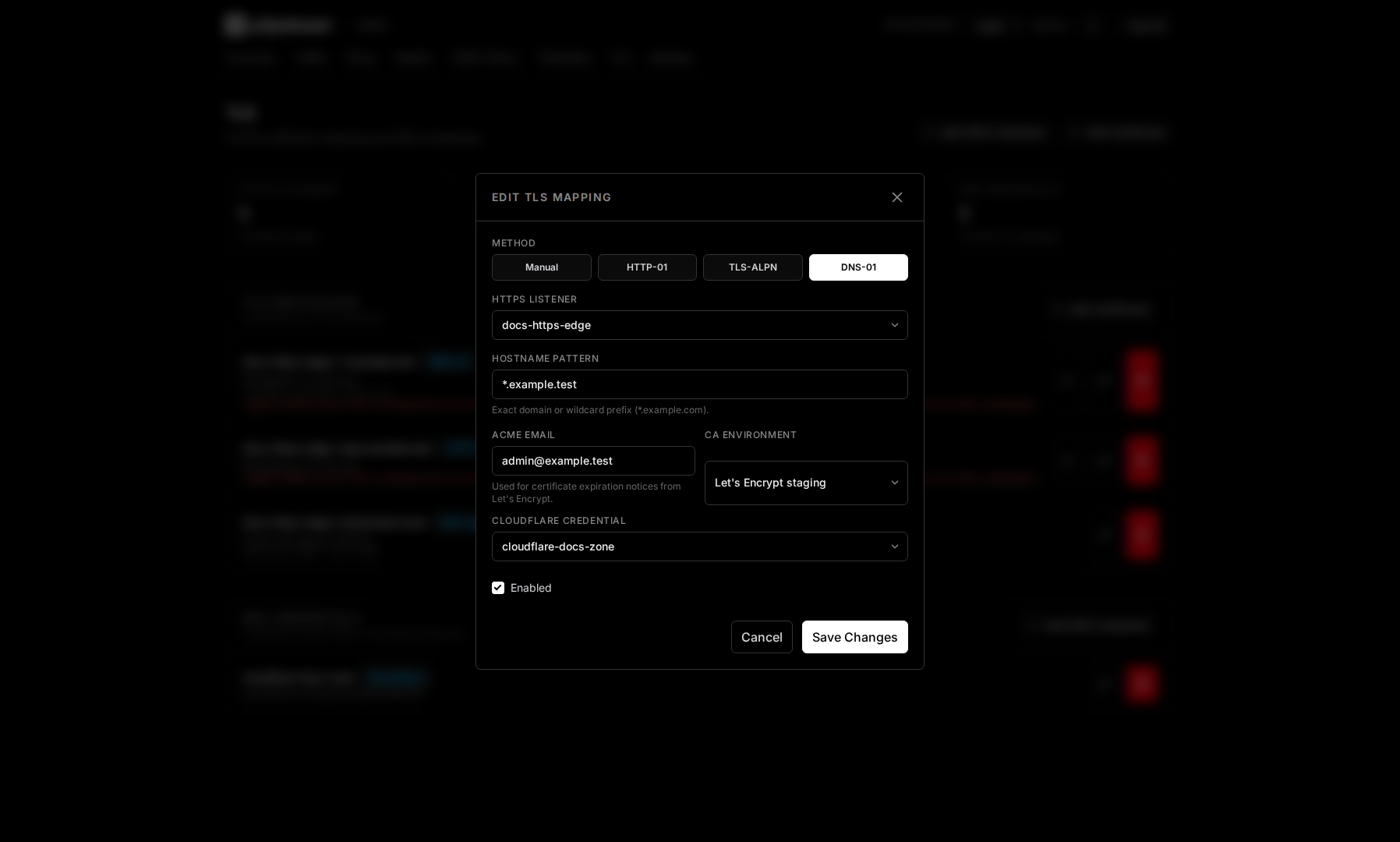

p2pstream Edit TLS Mapping drawer showing DNS-01 challenge with a saved Cloudflare DNS credential — Edit DNS-01 mapping

System Settings

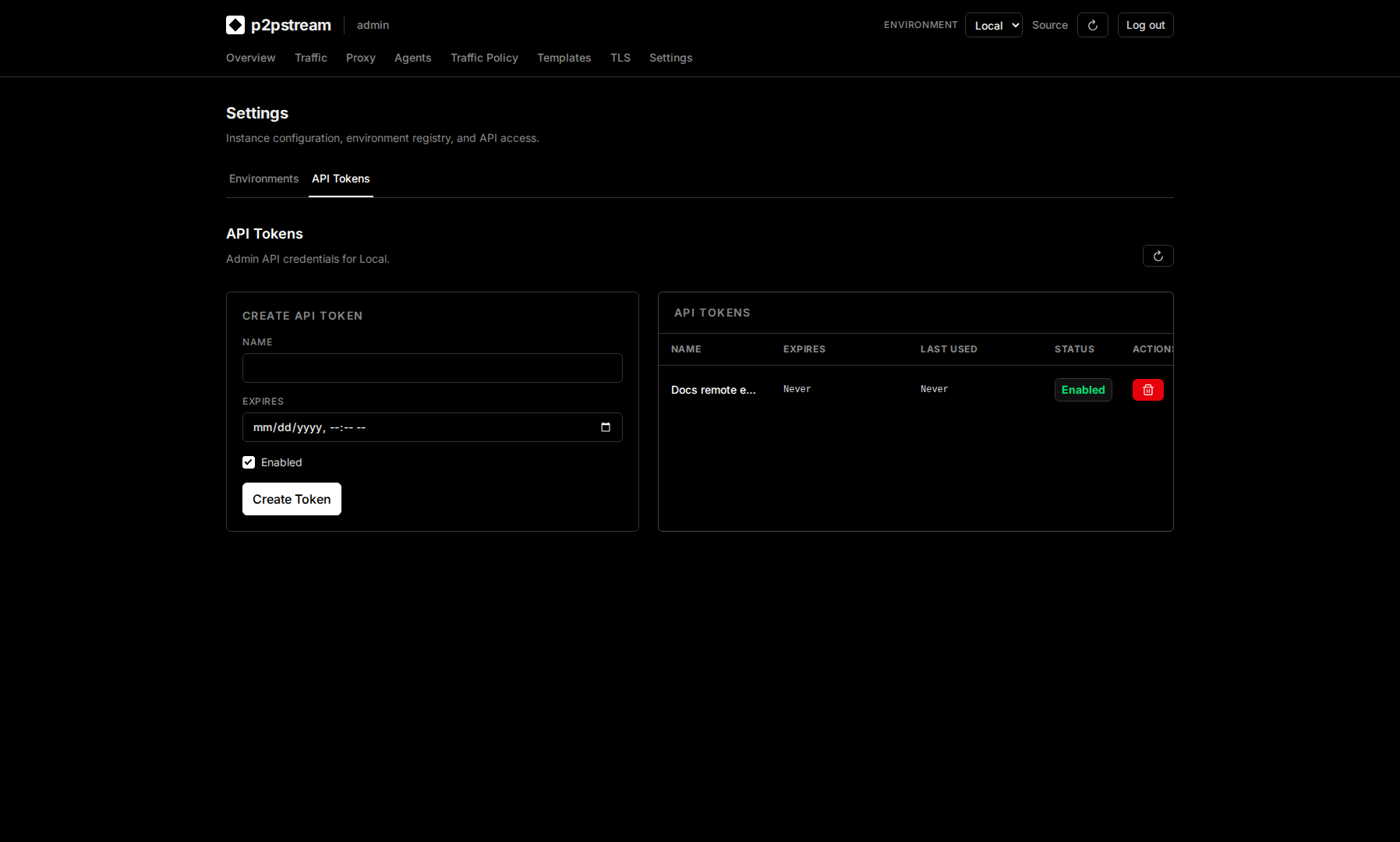

p2pstream API Tokens page under System showing the selected environment, issued-token table, expiry, last-used time, status, Create Token, refresh, and revoke actions — Selected-environment API tokens

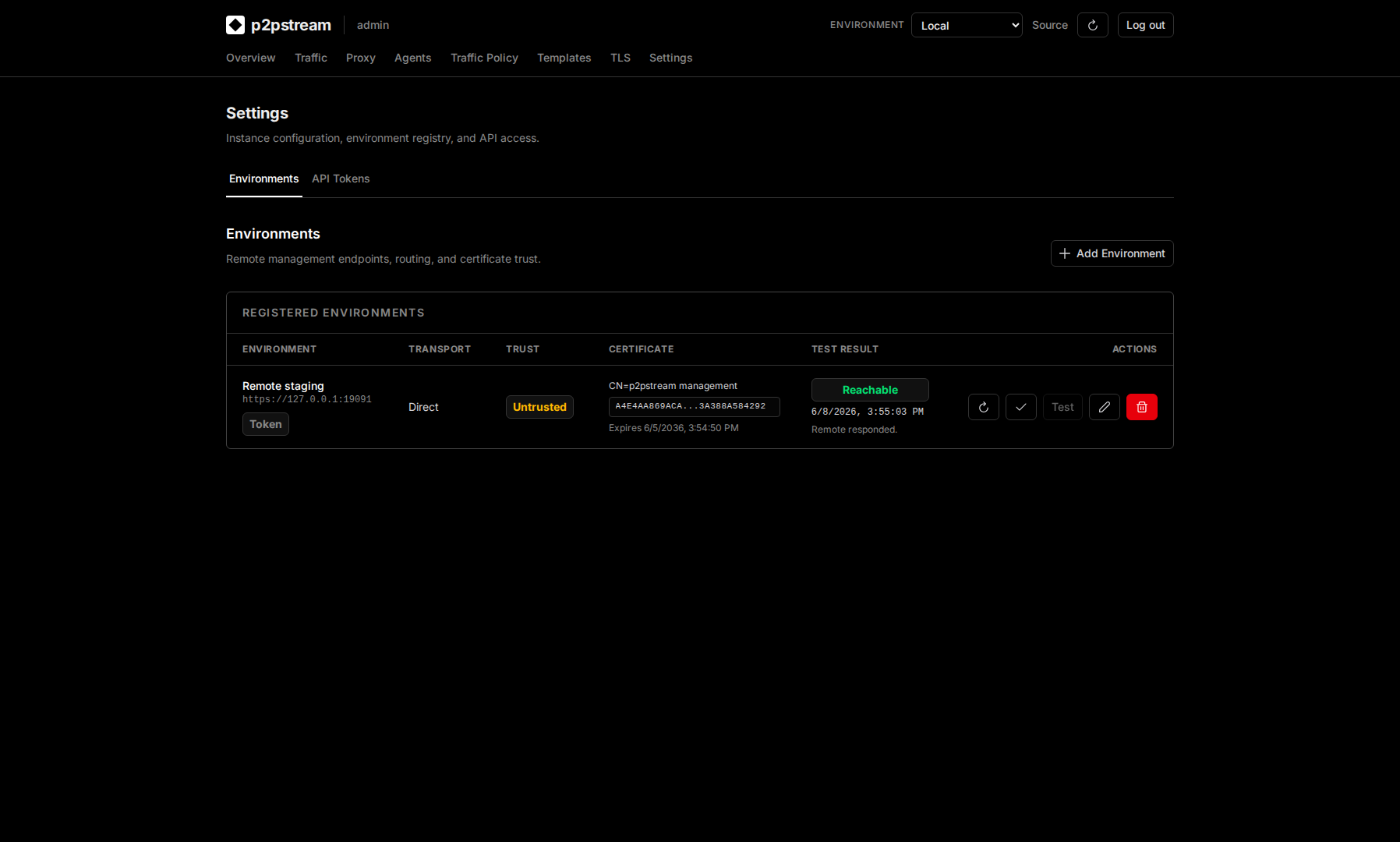

p2pstream Environments page under System showing a registered remote's endpoint and transport, certificate trust, reachability, Review trust, Test, and More actions while Local remains in the header selector — Remote environment registry

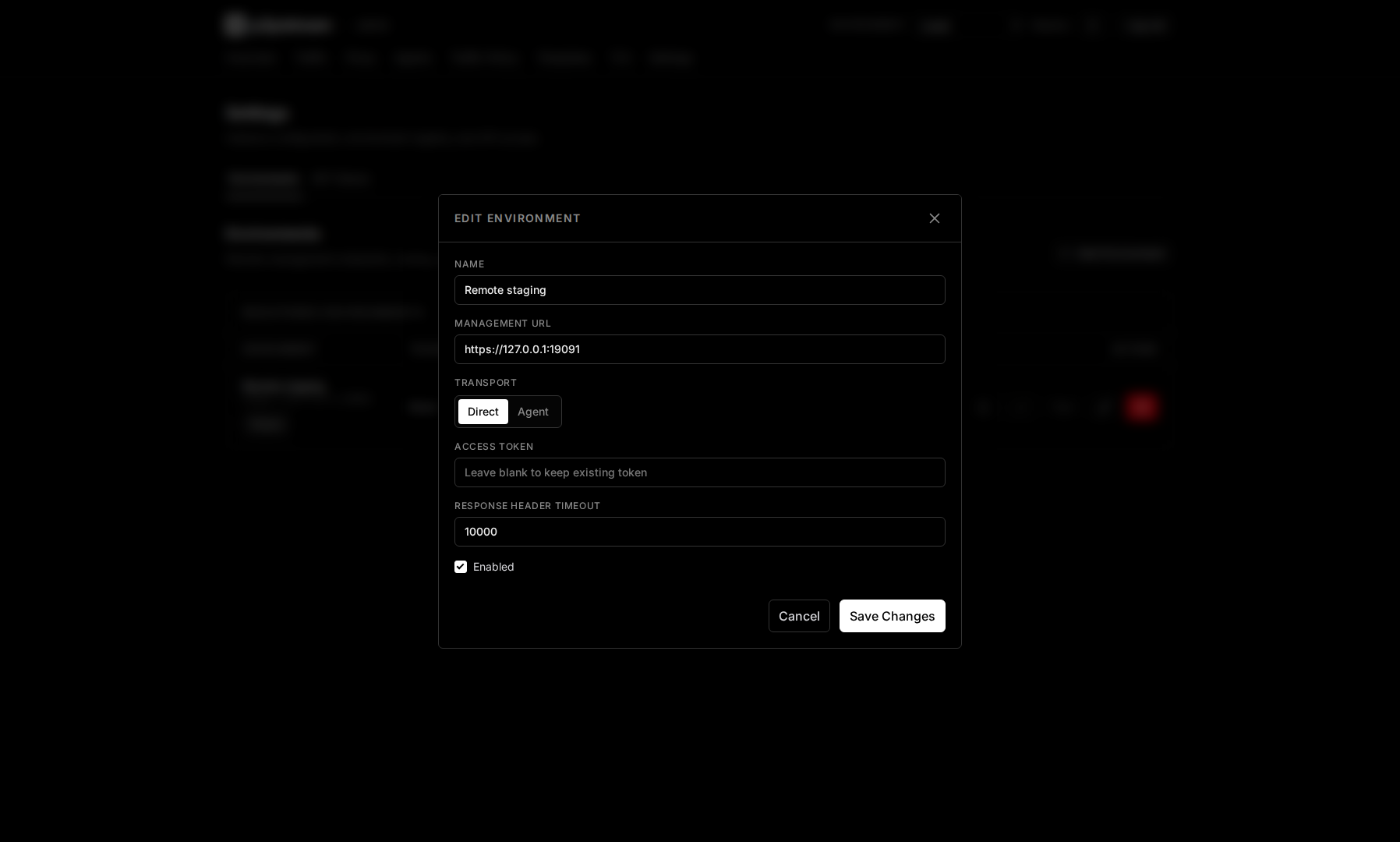

p2pstream Edit Environment drawer showing management URL, Direct or Agent transport, retained access-token state, enabled state, and response-header timeout — Edit Environment drawer

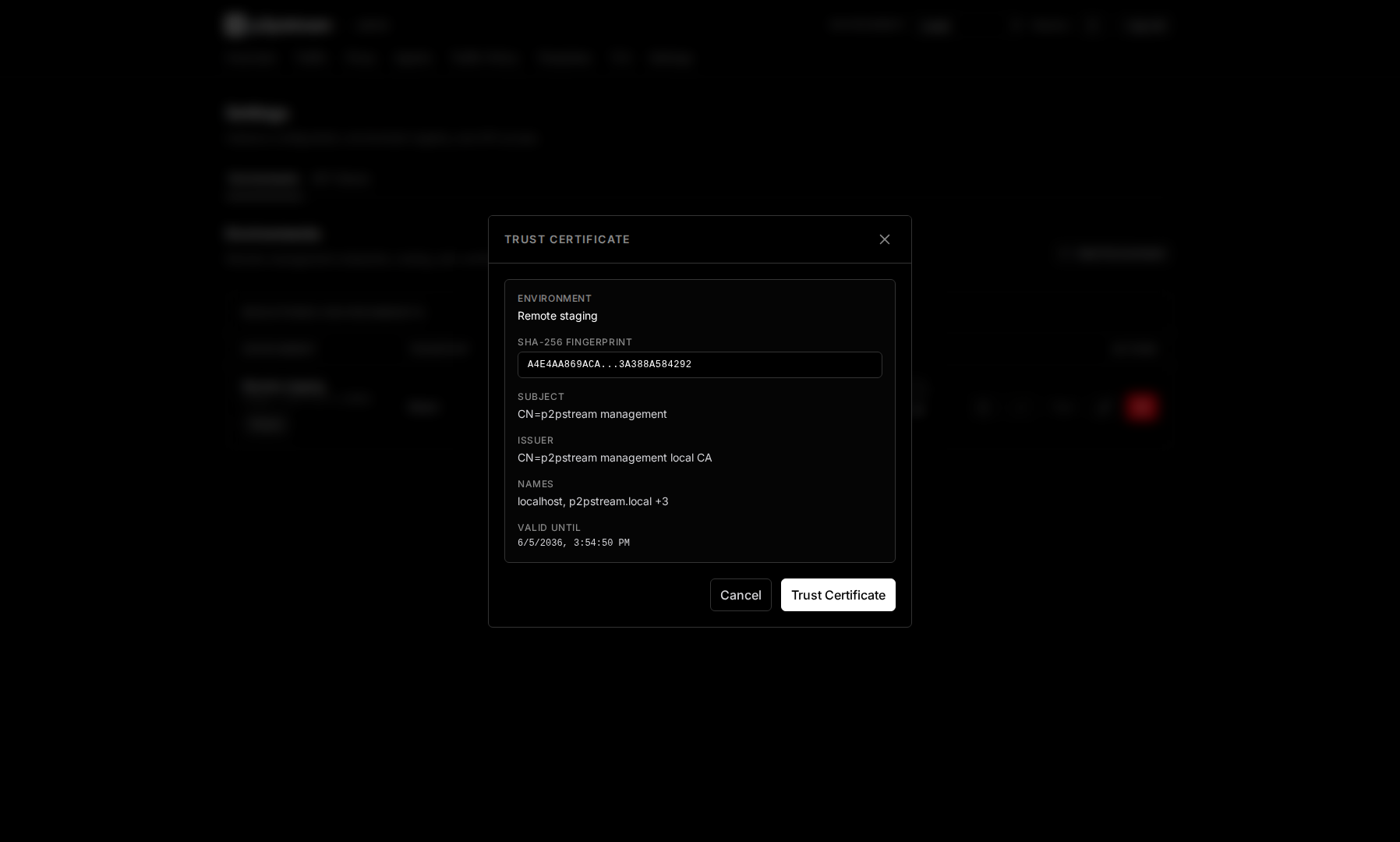

p2pstream Trust Certificate dialog showing the environment, full SHA-256 fingerprint, subject, issuer, certificate names, valid-until time, and Trust Certificate action — Environment certificate trust

Runtime Effects

These images are documentation assets only. They do not change product behavior and should be refreshed when the management UI layout changes.
